Symptom Related Diagnostic Procedures

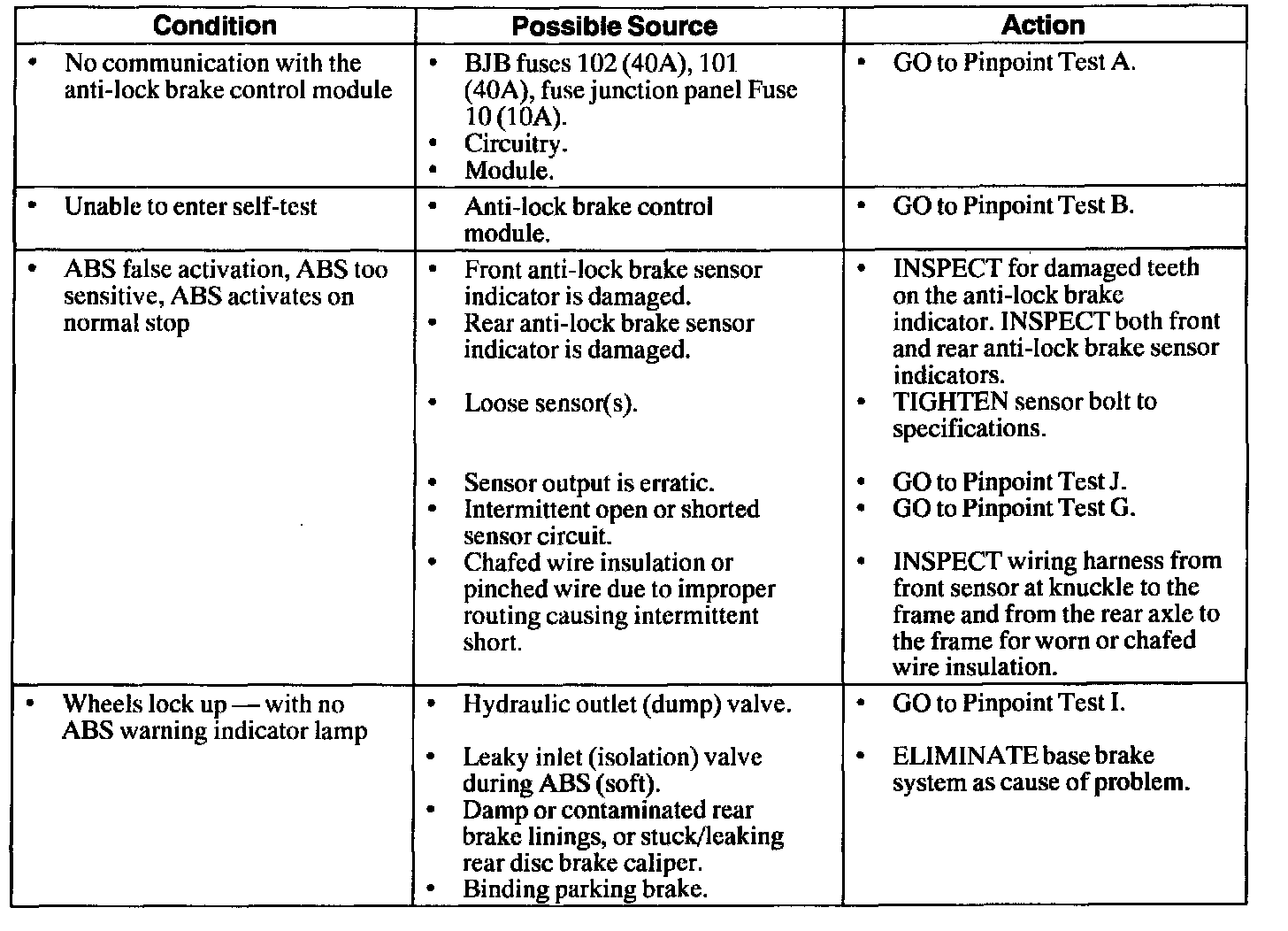

1 Of 2:

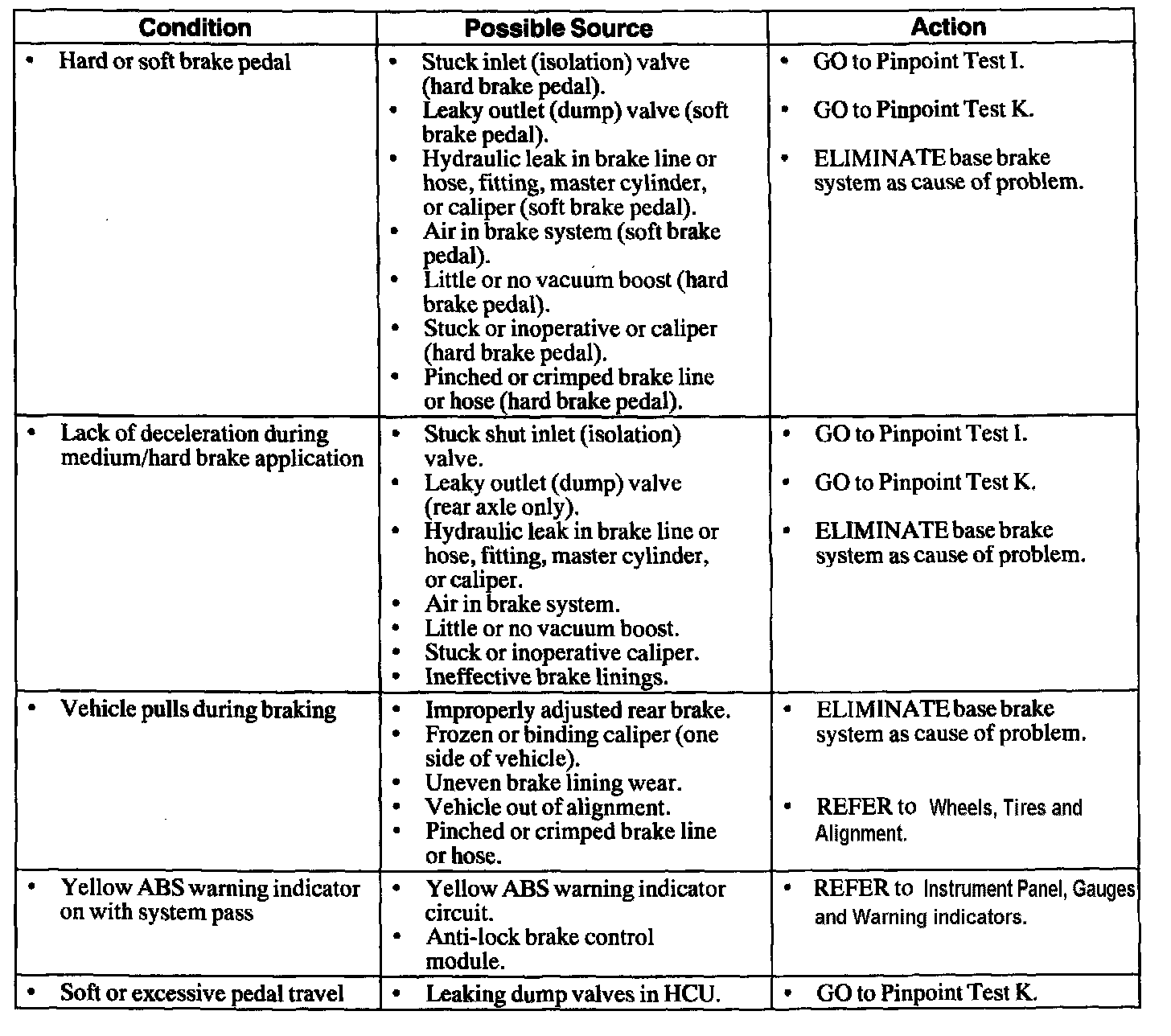

2 Of 2:

Note: Failure of a mechanical brake component may not cause the yellow ABS warning indicator to illuminate or a DTC to be stored. The Symptom Chart is a starting point to begin diagnosis of these concerns.

Note: Refer to Wiring Diagrams for connector numbers stated in Pinpoint Tests.
