A Pillar - Trim Warped

Article No.
99-21-6

10/18/99

INTERIOR - A-PILLAR TRIM WARPED - VEHICLES
BUILT FROM 8/7/1998 THROUGH 8/26/1999

FORD:

1999-2000 WINDSTAR

ISSUE
The A-pillar trim may become warped as a result of stress from the expansion and contraction of the material due to temperature changes.

ACTION

Replace the A-pillar trim piece, eliminate the lower retaining clip, and cut a slit in the base of the middle retaining clip. This should reduce the possibility of warpage. Refer to the following Service Procedure for details.

SERVICE PROCEDURE

1. Remove the warped A-pillar trim from vehicle.

2. Obtain a new A-pillar trim from service stock.

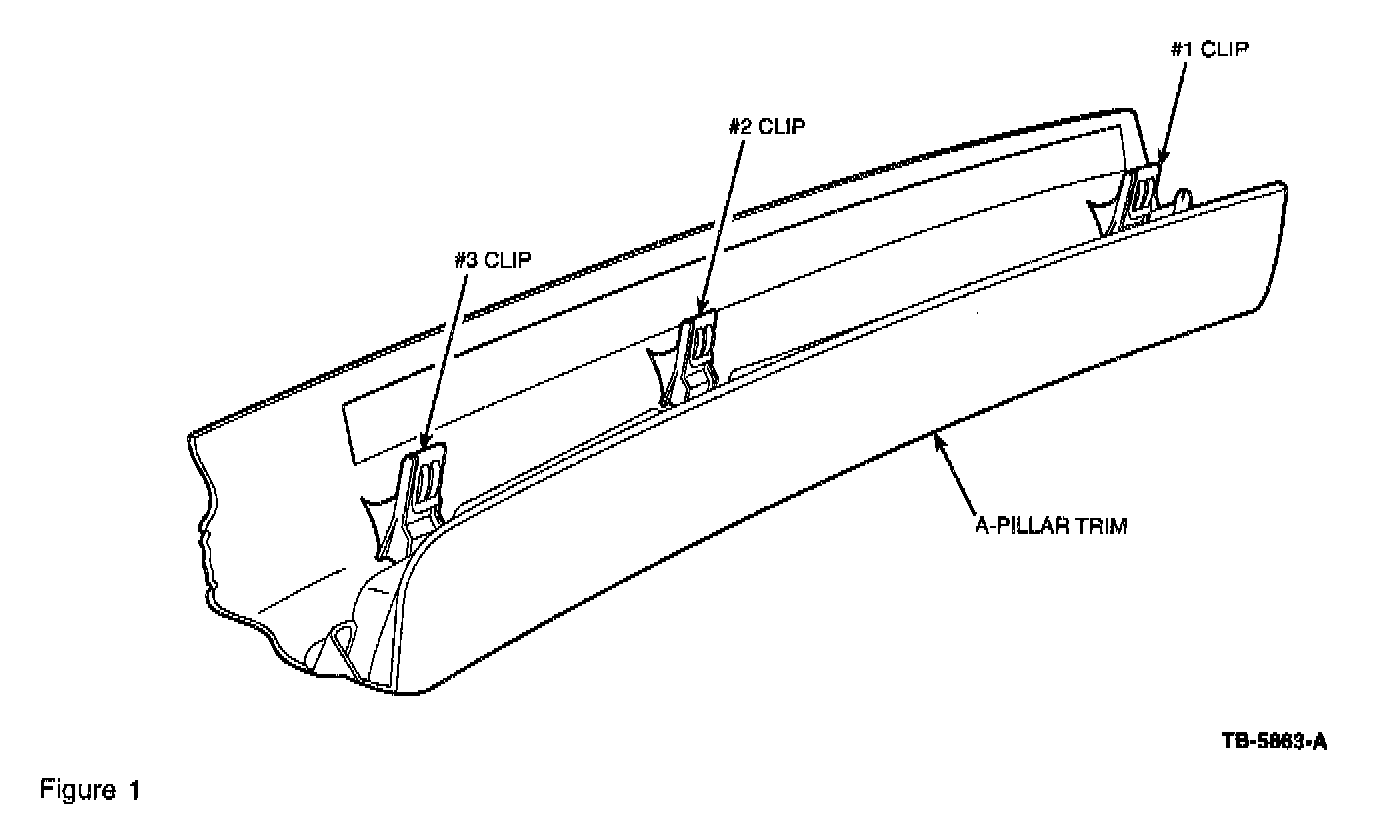

3. Remove the # 3 retaining clip (bottom of trim piece) by cutting off the plastic sail area (Figure 1).

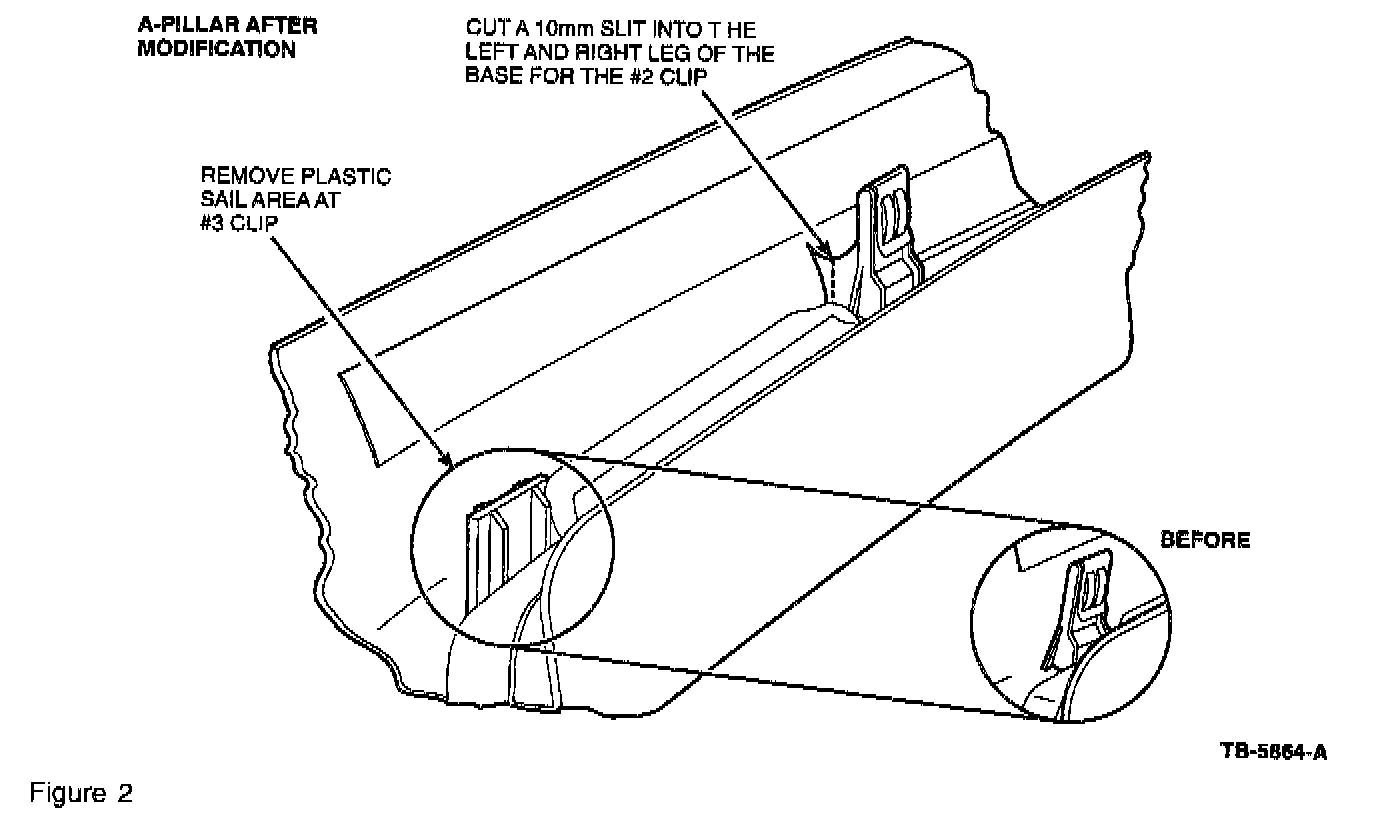

4. Cut two slits approximately 10 mm long into the plastic base of # 2 clip (# 2 clip is located middle of trim piece) at the two areas indicated (Figure 2).

5. Install the reworked trim piece onto the A-pillar

PART NUMBER PART NAME

XF2Z-1603598-AAB A-Pillar Trim
XF2z-1603598-AAA A-Pillar Trim

OTHER APPLICABLE ARTICLES: NONE

WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage

OPERATION DESCRIPTION TIME

992106AB Replace Both A-Pillar Trim 0.3 Hr.
Pieces

992106A Replace One A-Pillar Trim 0.2 Hr.
Piece

DEALER CODING
CONDITION
BASIC PART NO. CODE
1603598 34

OASIS CODES: 107000
