Second Row Bucket

REMOVAL
1. Remove the second row bucket seat.
2. Remove the armrest.
3. Pull up on the recline handle to release the spring tension.

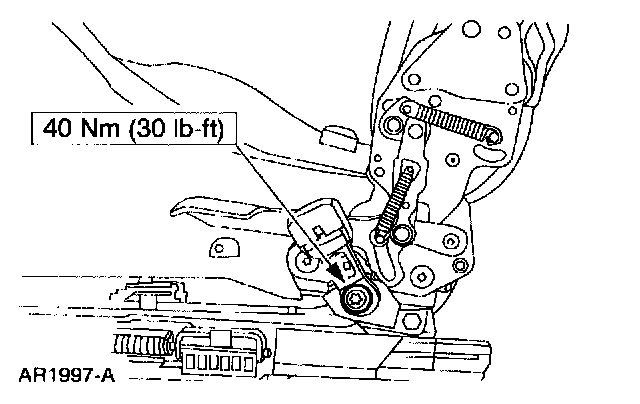

4. Remove the bolt.

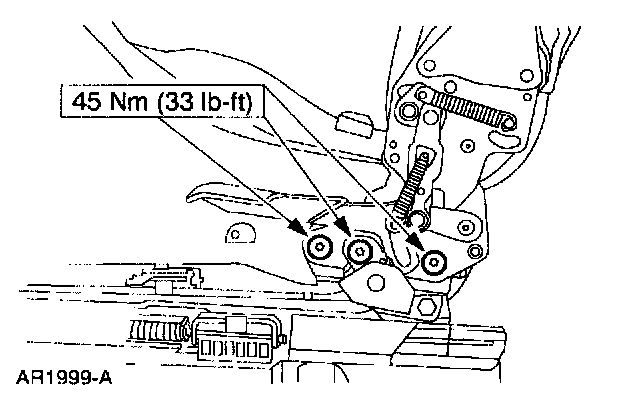

5. Remove the bolts.







6. Remove the panel.







7. Release the J retainers, and the hook and loop fasteners on each side







8. Remove the bolts on each side. Remove the seat backrest.

INSTALLATION
1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
