Seat-Two and Three Passenger Seat Backrest, Pad and Frame
DISASSEMBLY1. Remove the seat.

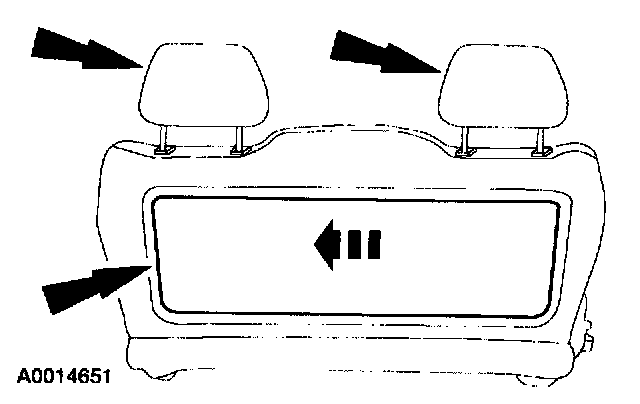

2. Position the headrests in the full up position. Remove the trim panel.

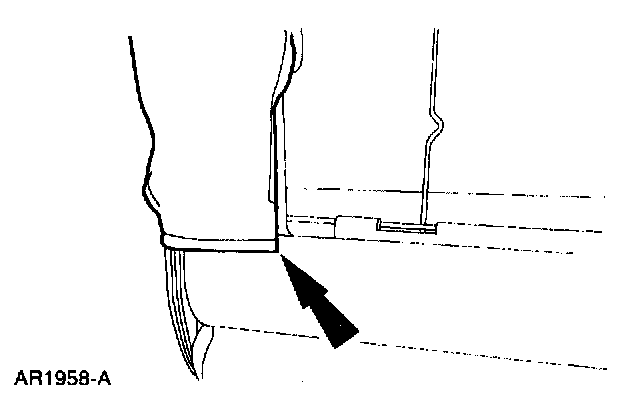

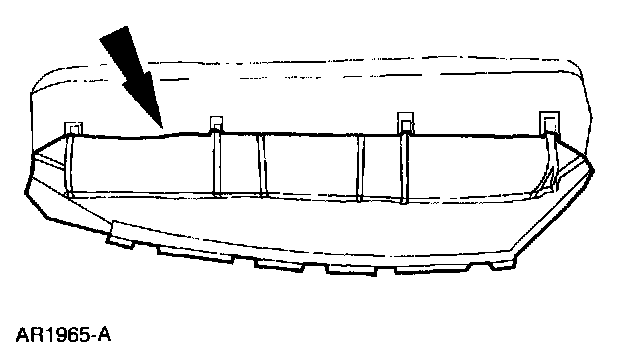

3. Release the J retainer on each side.

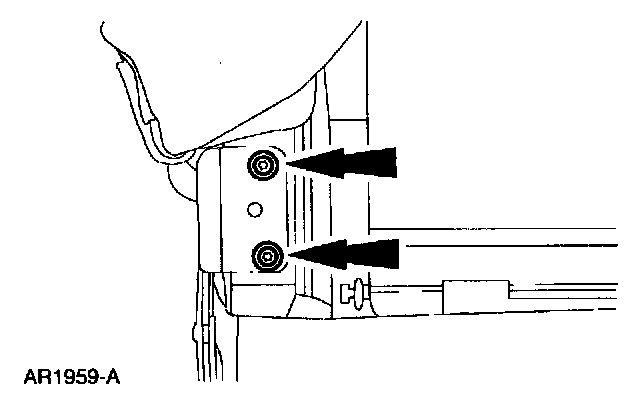

4. Remove the bolts on each side.

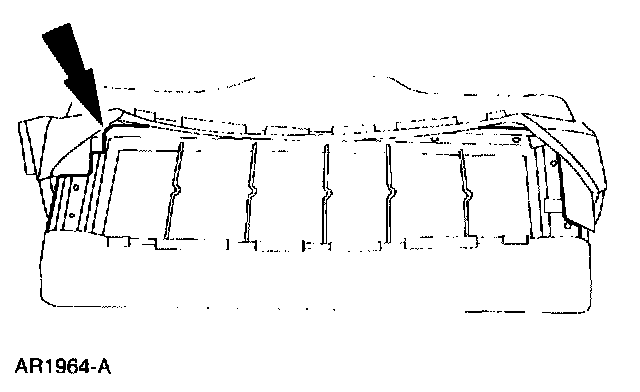

5. Remove the headrest on each side.
6. Release the J retainers.

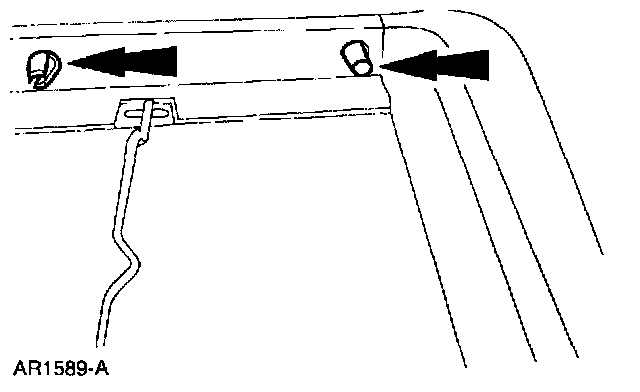

7. Remove the headrest guides from each side.
8. Remove the frame.
9. Remove the cover from the pad.
ASSEMBLY
1. Install the frame on the pad.
2. Install the trim.
3. Install the headrest guides.

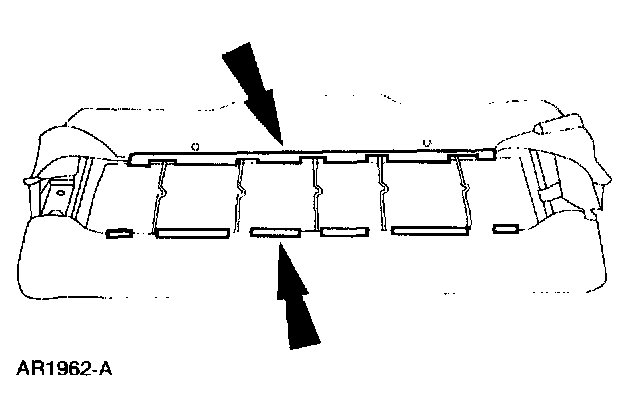

4. Install the J retainers.
5. Install the headrests

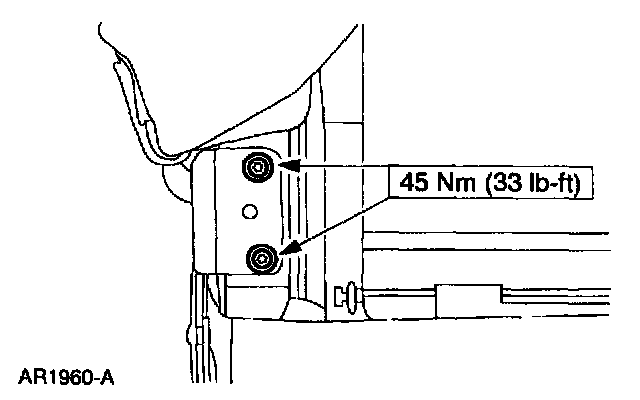

6. Install the bolts on each side.
7. Install the J retainer on each side.

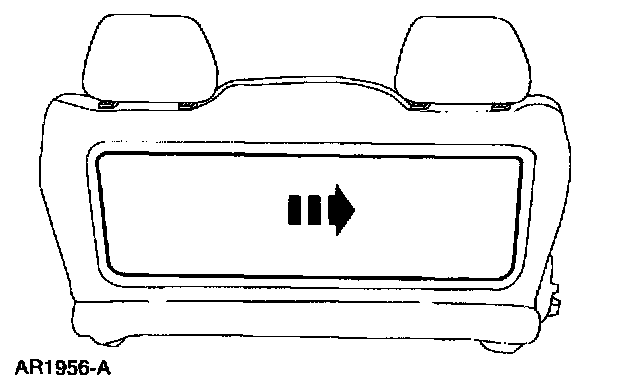

8. Install the trim panel.
9. Install the side trim cover.
10. Install the seat.
11. Cheek the restraint systems for proper operation.
