Seat-Second Row Bucket Seat Backrest, Pad and Frame

DISASSEMBLY
1. Remove the seat.







2. Remove the trim panel.

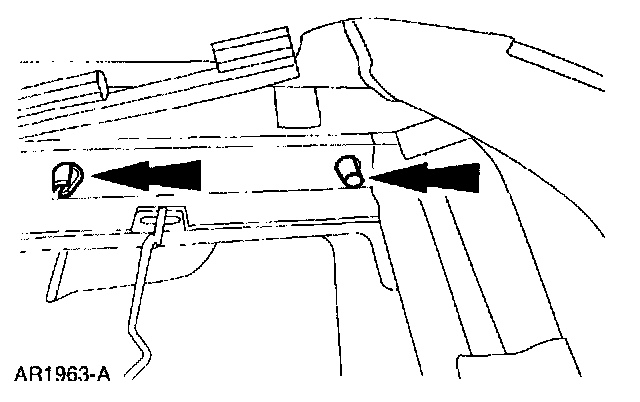

3. Release the J retainers and Velcro(R) on each side.







4. Remove the bolts on each side.







5. Remove the headrest.

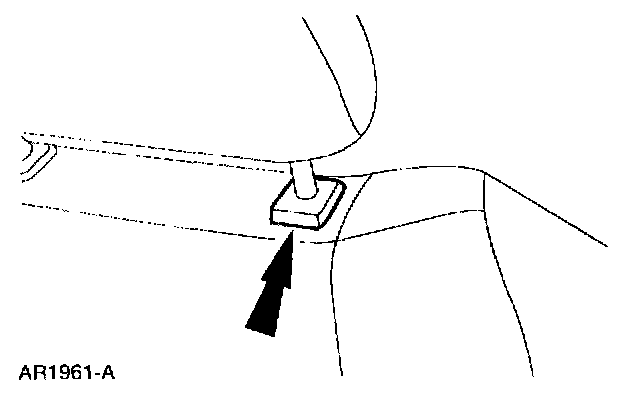

6. Remove the headrest guides from each side.

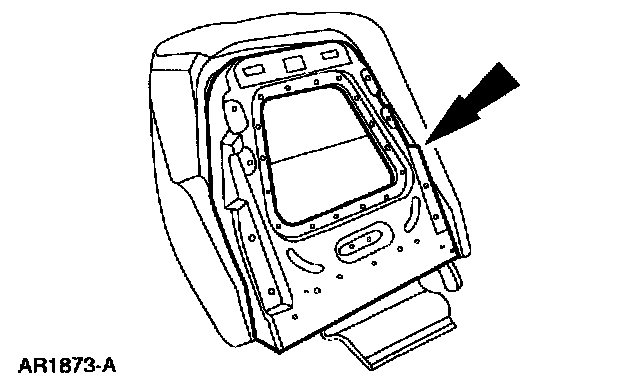

7. Remove the seat backrest frame.
8. Separate the trim cover from the pad.

ASSEMBLY
1. Install the headrest guides on each side.







2. Install the frame onto the pad.
3. Install the trim.







4. install the headrest.







5. Install the bolts.







6. Install the Velcro(R) and J retainers.







7. Install the trim panel.
