Second Row Bucket

REMOVAL
1. Remove the second row bucket seat.

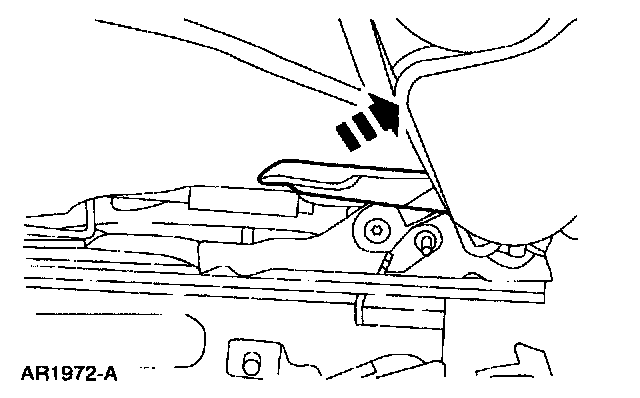

2. Lift up on the seat recliner handle to release the spring tension.

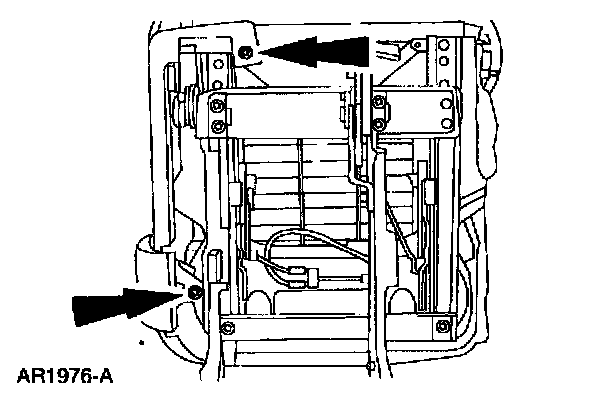

3. Remove the screws from each side.

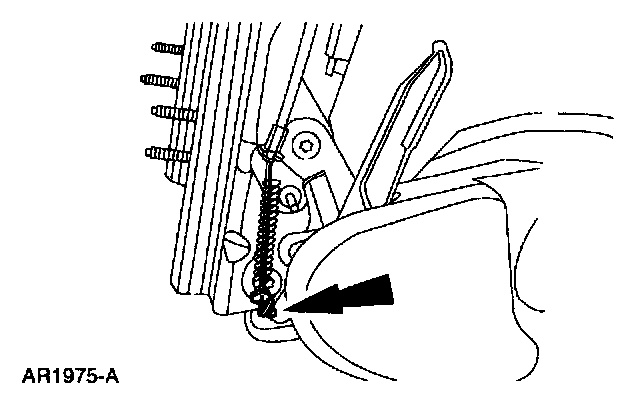

4. Disconnect the cable.

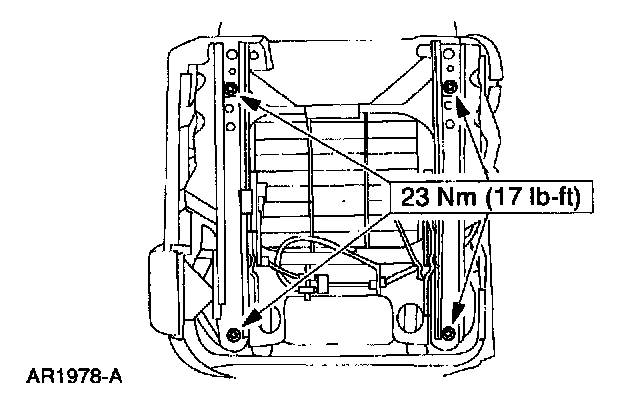

5. Remove the bolts.

NOTE: The seat track is shown removed for clarity. These bolts can be accessed by moving the seat track forward and rearward.

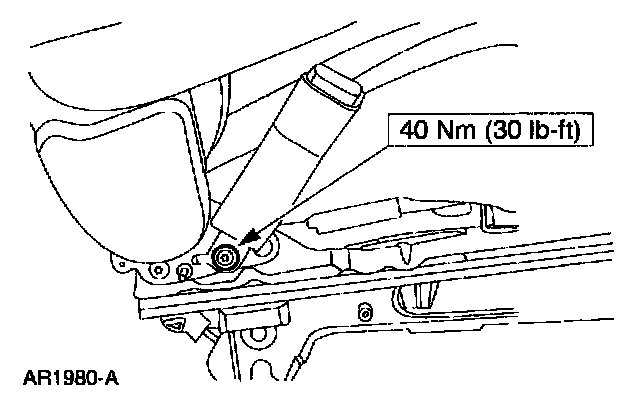

6. Remove the safety belt buckle bolt and safety belt buckle.

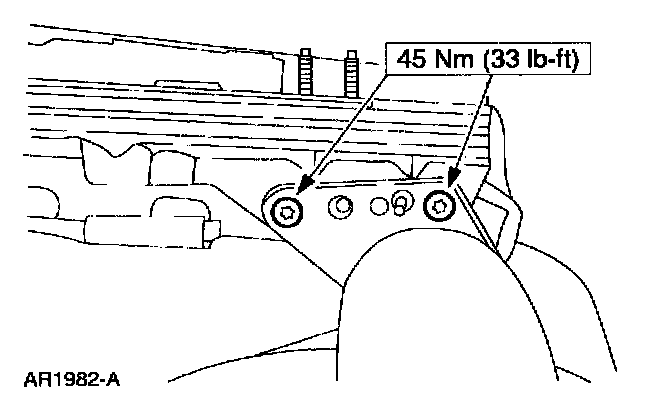

7. Remove the bolts on each side.

INSTALLATION
1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
