Second Row Bucket

DISASSEMBLY
1. Remove the seat.
2. Remove the seat track.

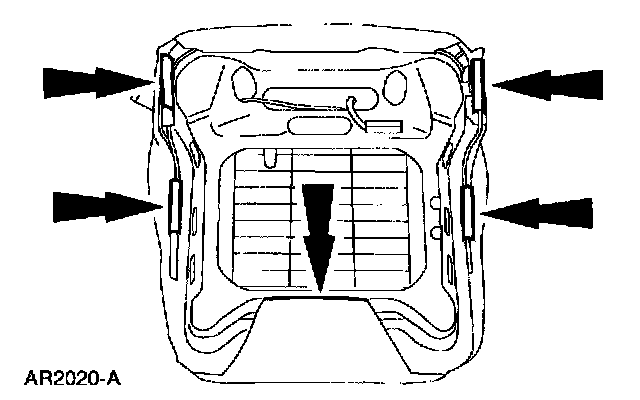

3. Release the J retainers.







4. Turn the frame over and release the front J retainer.







5. Remove the trim.
6. Remove the pad from the frame.

ASSEMBLY

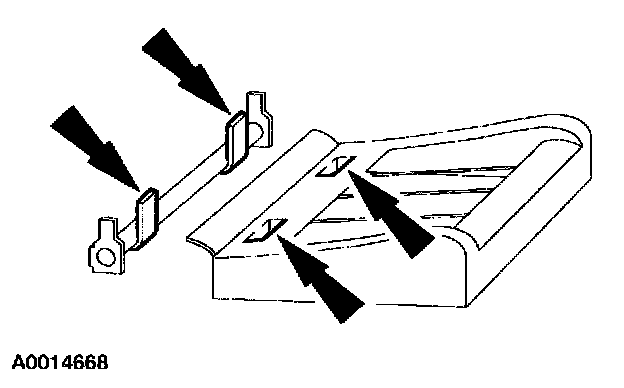

1. Install the J retainer.







2. Install the trim.







3. Align the trim holes with the child seat anchors.







4. Install the J retainers.
5. Install the seat track.
6. Install the seat.
7. Check the restraint system for proper operation.
