Home
>>
Ford Truck
>>
2000
>>
Windstar V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Power Seat Switch
>>
Testing and Inspection
>>
Right Front Seat Control Switch
Right Front Seat Control Switch
Component Testing Procedure:

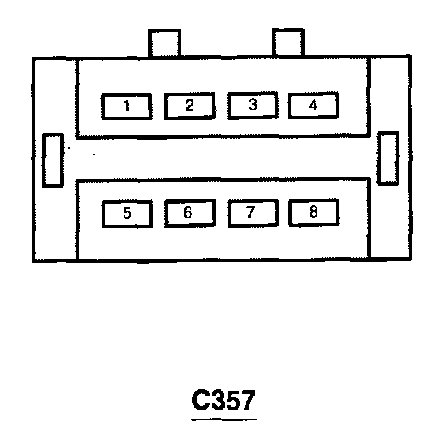

Terminals:

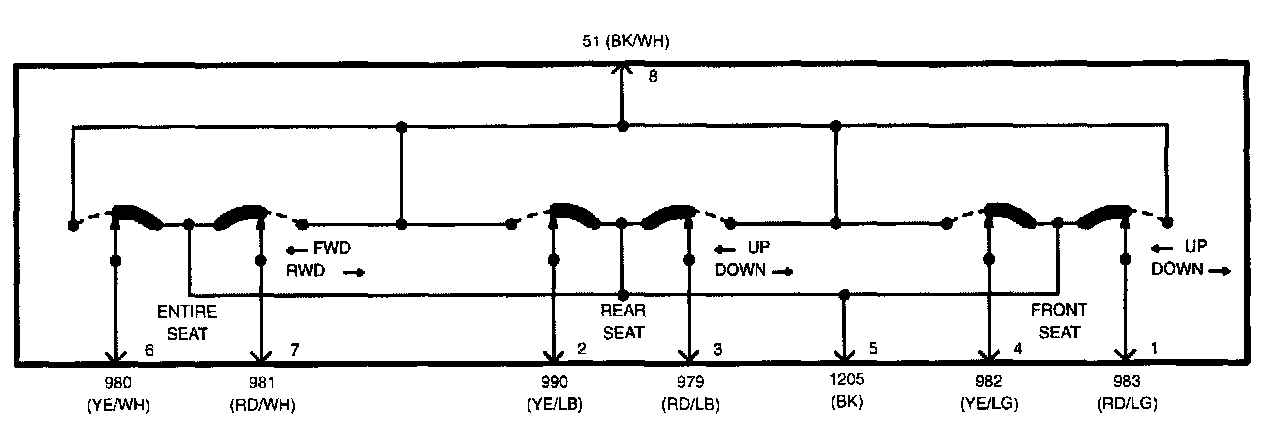

Schematic:
