Trim Panel - Quarter

TRIM PANEL - QUARTER

Removal

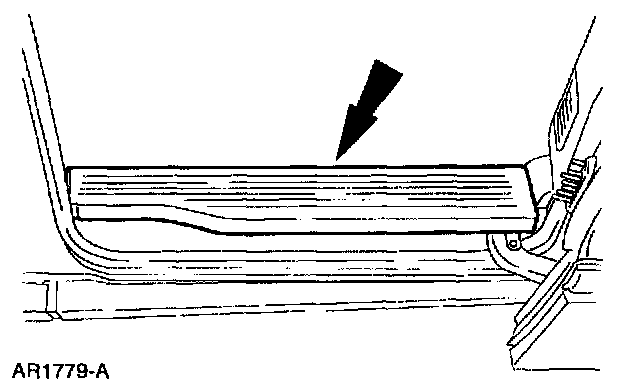

1. Remove the sliding door scuff plate (13208).

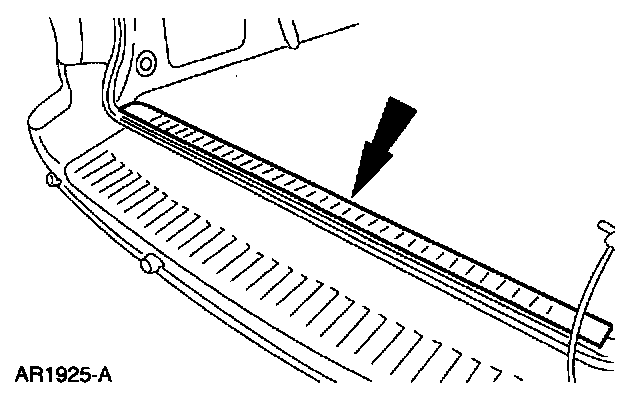

2. Remove the liftgate scuff plate (404C06).
3. Remove the upper C-pillar trim panel.
4. Remove the upper D-pillar trim panel.

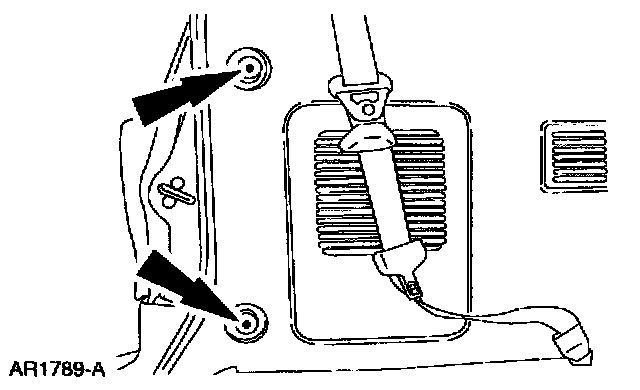

5. Remove the quarter trim panel screws.

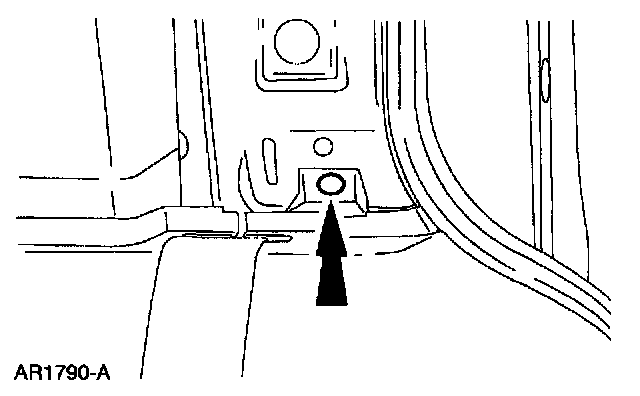

6. Remove the pin-type retainer.

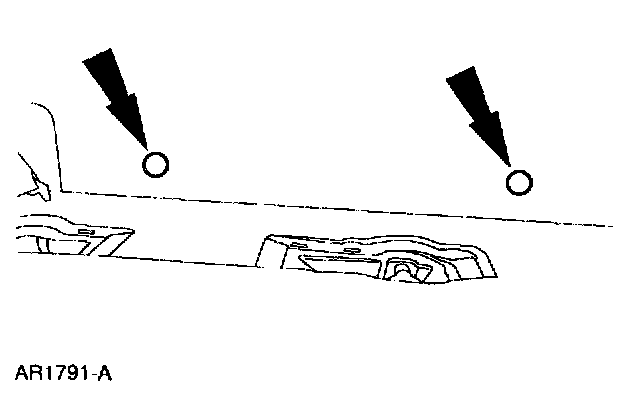

7. Remove the quarter trim panel pin-type retainers and the quarter trim panel (31012).

Installation
1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
