Quarter Trim Panel

REMOVAL

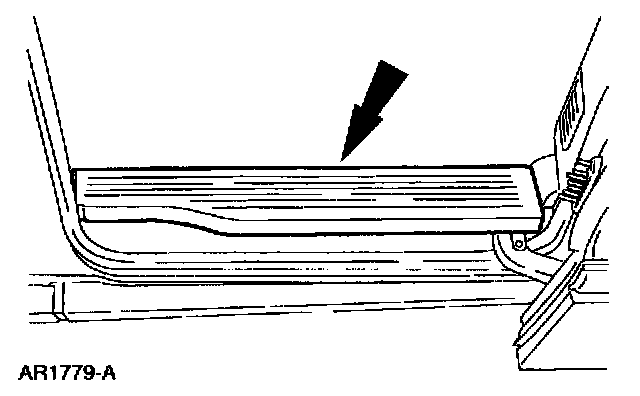

1. Remove the sliding door scuff plate.

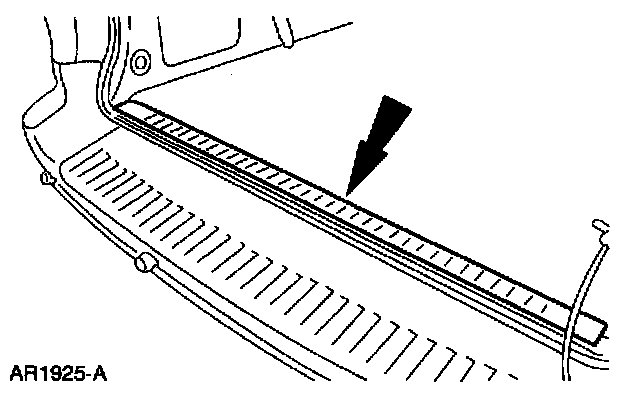

2. Remove the liftgate scuff plate.
3. Remove the upper C-pillar trim panel.
4. Remove the upper D-pillar trim panel.

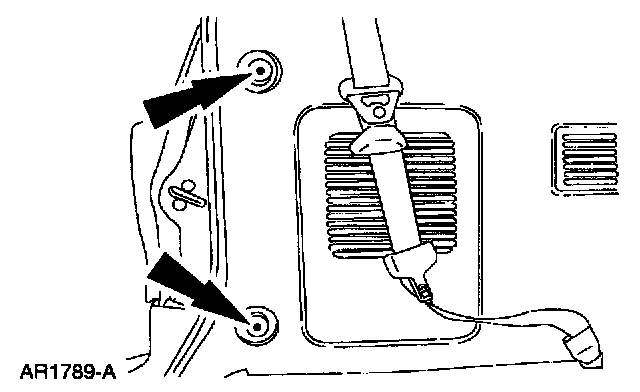

5. Remove the quarter trim panel screws.

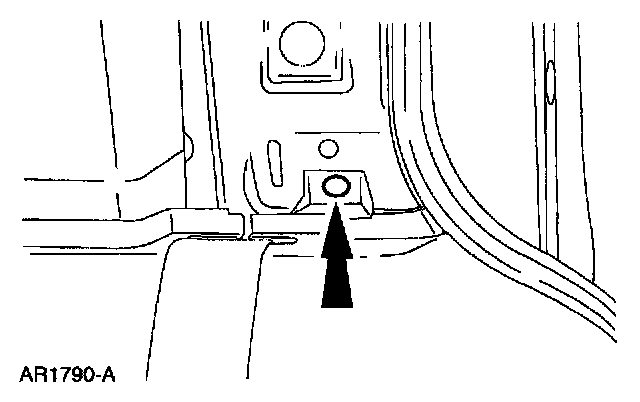

6. Remove the pin-type retainer.

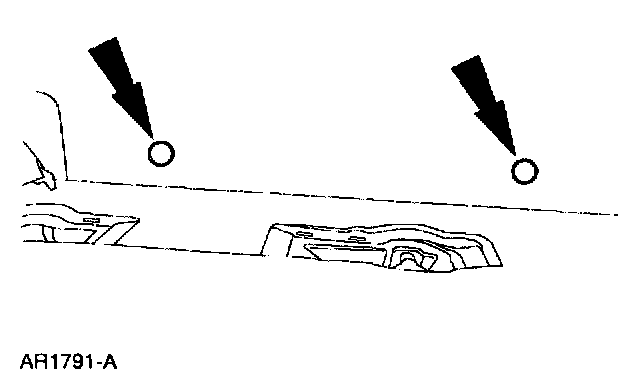

7. Remove the quarter trim panel pin-type retainers and the quarter trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
