D-Pillar Trim Panel

Seat Belt Bolt Bit:

SPECIAL SERVICE TOOL(S)

REMOVAL

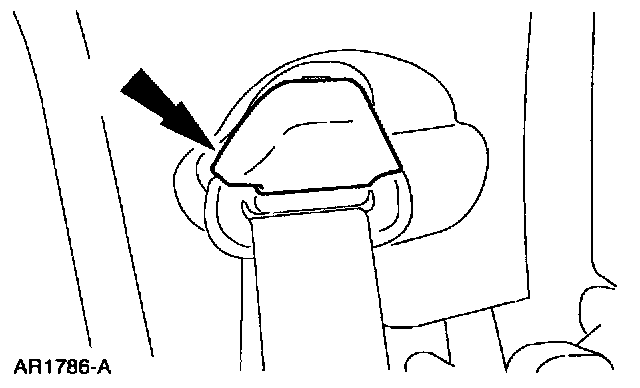

1. Lift the safety belt guide cover.

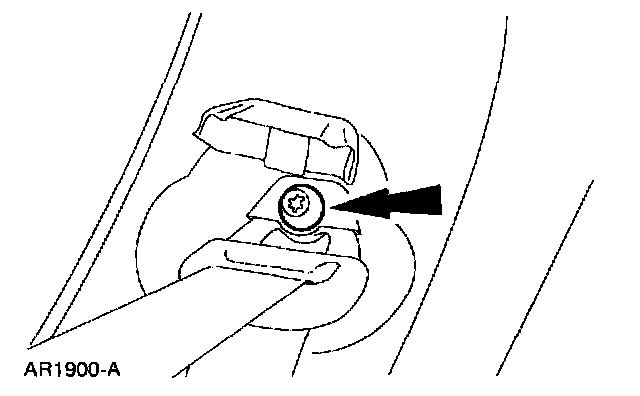

2. Using the special tool, remove the safety belt guide bolt.

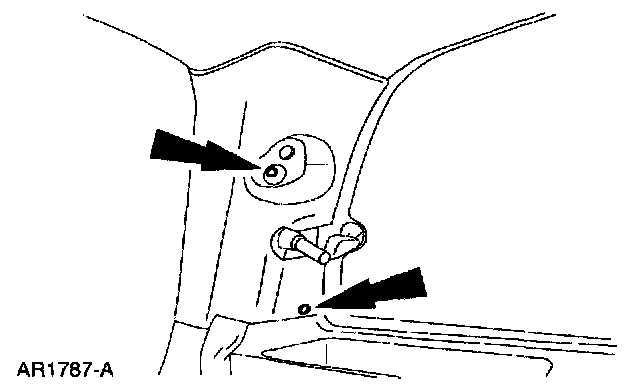

3. Remove the pin-type retainer.







4. Remove the upper D-pillar trim panel.

INSTALLATION







1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
