C-Pillar Trim Panel

REMOVAL

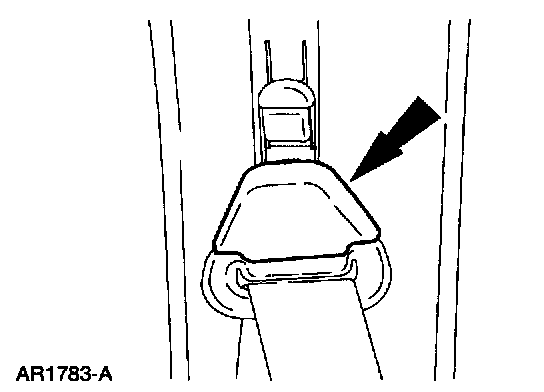

1. Lift the safety belt guide cover.

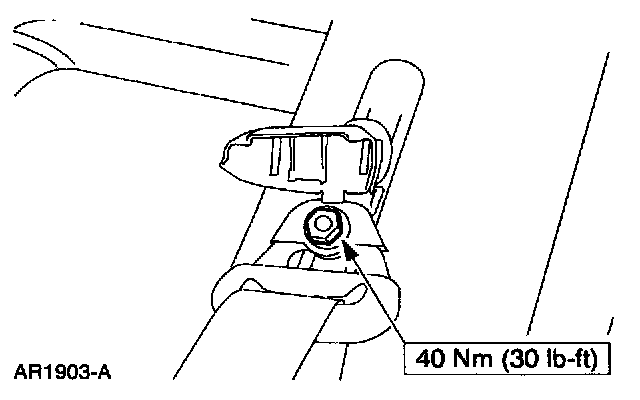

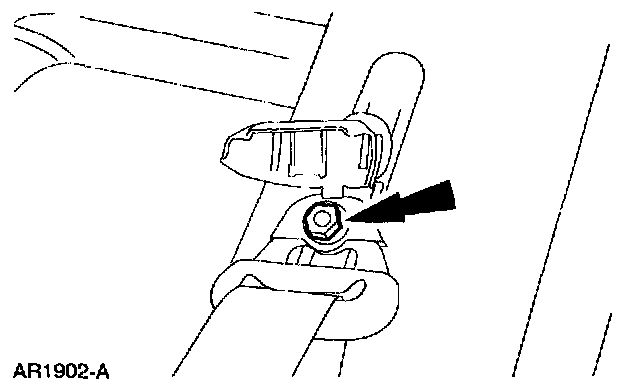

2. Remove the safety belt guide nut.

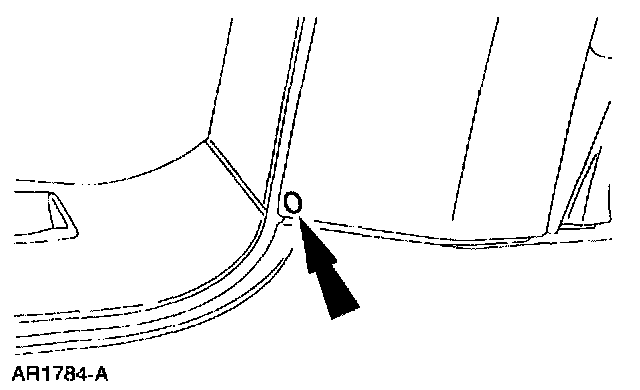

3. Remove the pin-type retainer.







4. Remove the upper C-pillar trim panel.

INSTALLATION







1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
