Upper

REMOVAL

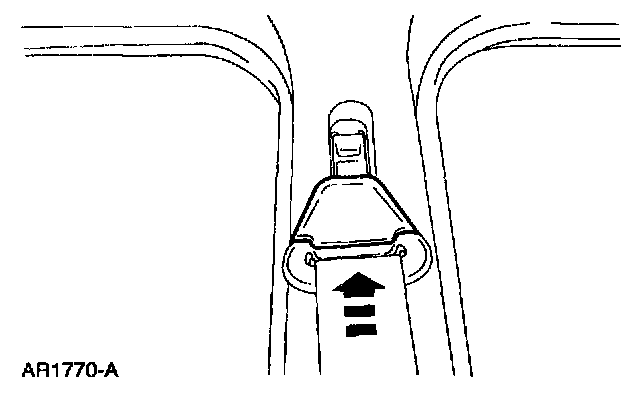

1. Lift the safety belt guide cover.

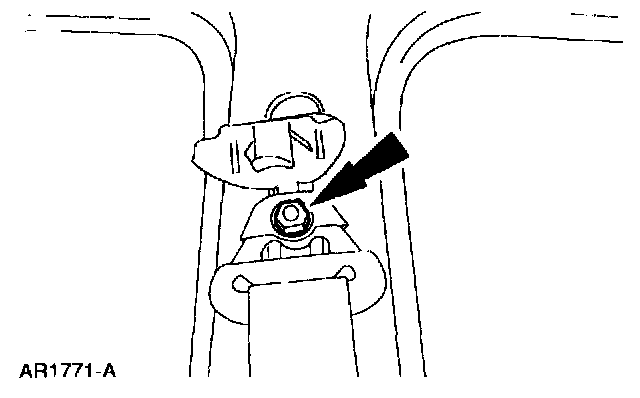

2. Remove the safety belt guide nut.

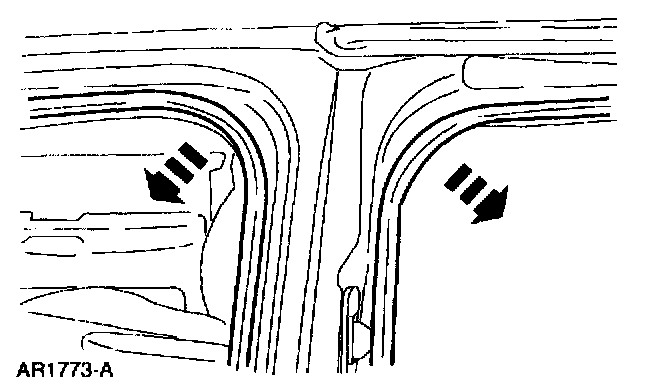

3. Position aside the weatherstrips.

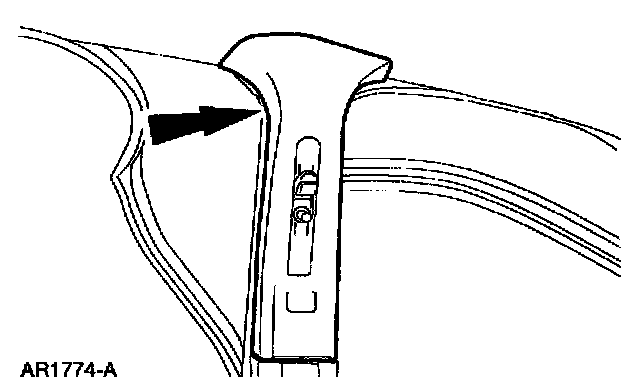

4. Remove the upper B-pillar trim panel.

INSTALLATION

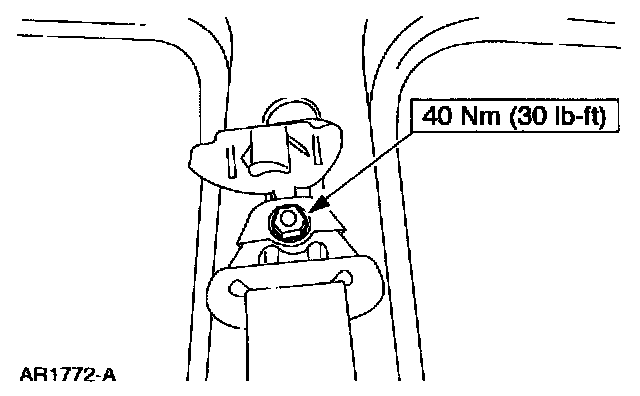

1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
