Lower

REMOVAL

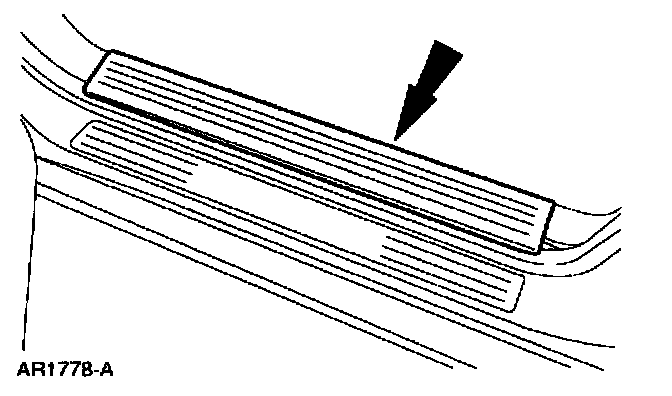

1. Remove the front door scuff plate.







2. Remove the sliding door scuff plate.
3. Remove the upper B-pillar trim panel.
4. Remove the trim panel.
5. Release the safety belt from the trim panel through the slot.

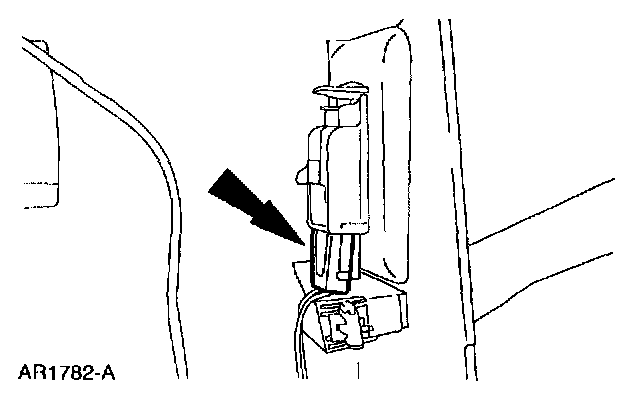

6. Disconnect the sliding door step lamp connector.

INSTALLATION
1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
