Cluster Finish Panel

REMOVAL
1. Disconnect the battery ground cable.
2. Place the gear selector lever into the 1 position.

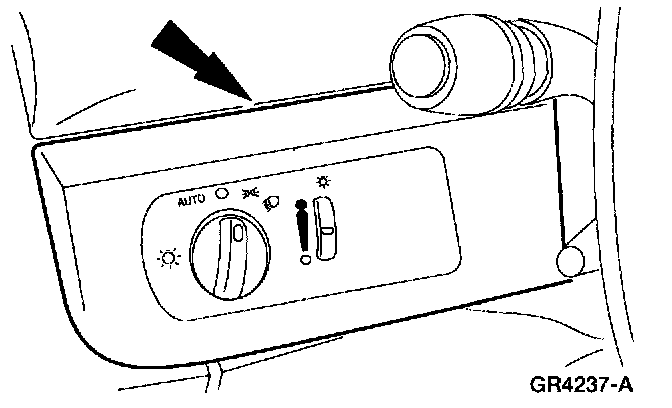

3. Remove the LH instrument panel finish panel.
^ Disconnect the electrical connectors.

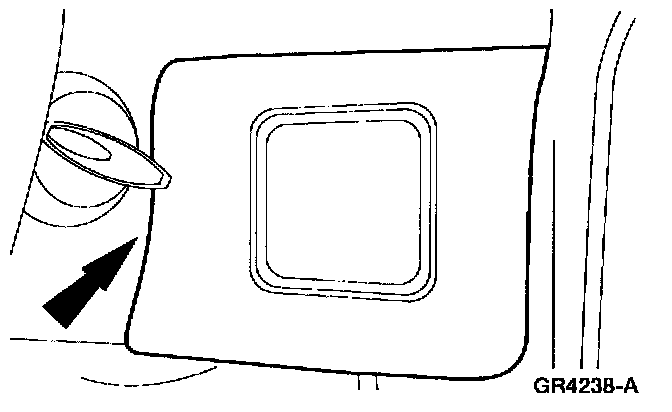

4. Remove the RH instrument panel finish panel.

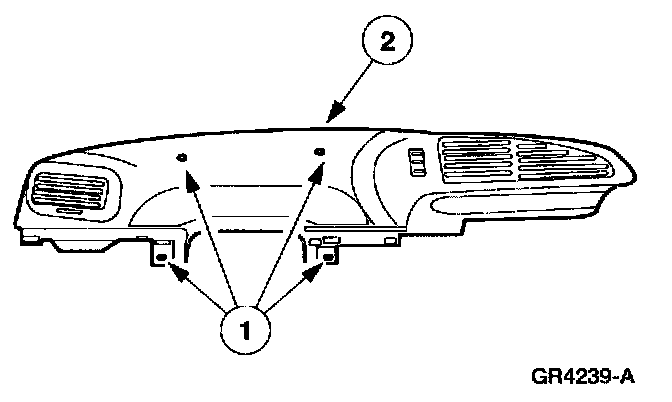

5. Remove the instrument panel finish panel.
1 Remove the screws.
2 Remove the instrument panel finish panel.
^ If equipped, disconnect the message center switch electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 10 miles (16 km) or more to relearn the strategy.
