Console - Floor

REMOVAL

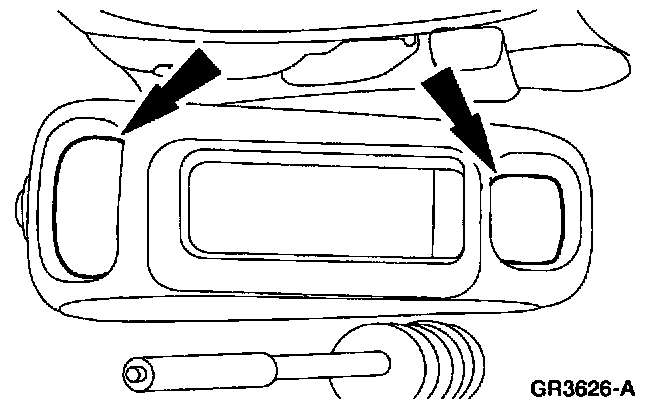

1. Remove the cupholder mats.

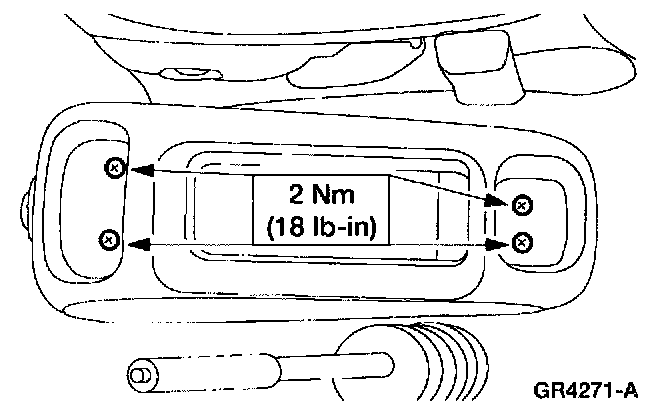

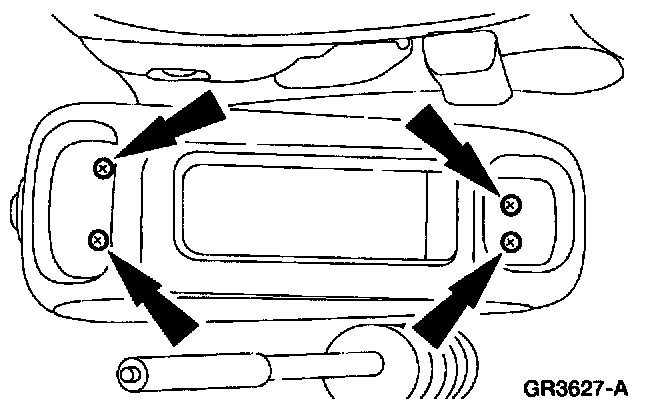

2. Remove the floor console screws.

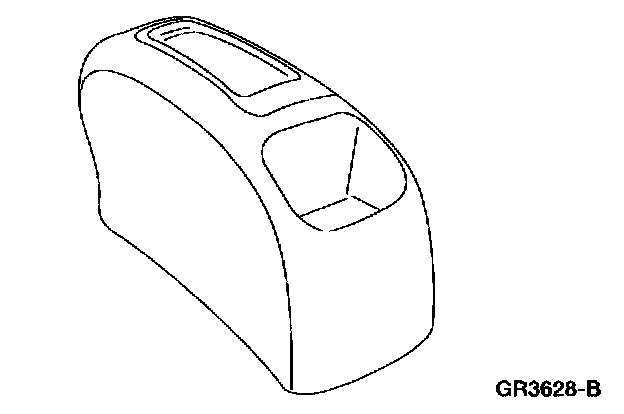

3. Remove the floor console.

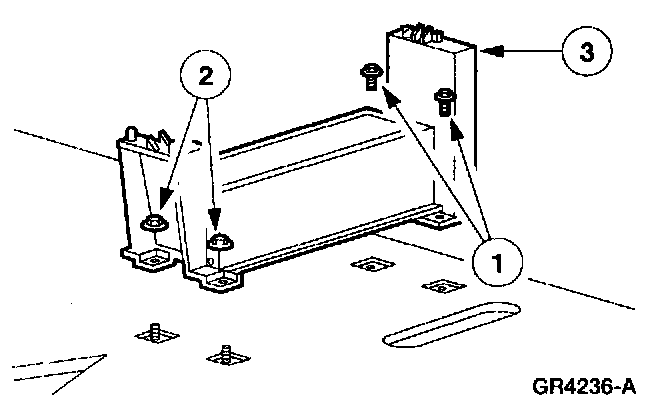

4. Remove the floor console bracket.
1 Remove the screws.
2 Remove the nuts.
3 Remove the floor console bracket.
^ If equipped, disconnect the compact disc changer electrical connector.

INSTALLATION







1. To install, reverse the removal procedure.
