Trunk / Liftgate Striker: Adjustments

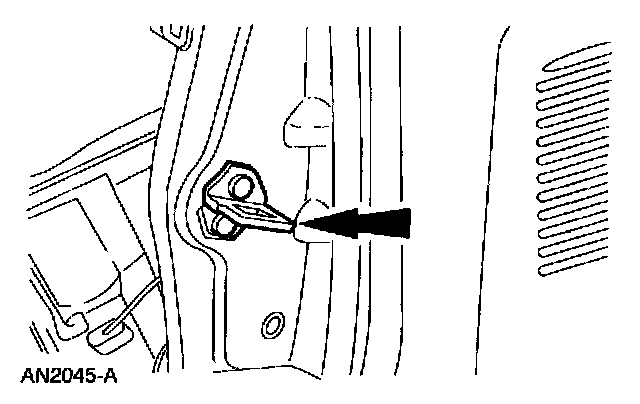

1. Remove the rear lamp assembly. For additional information, refer to Lighting and Horns.

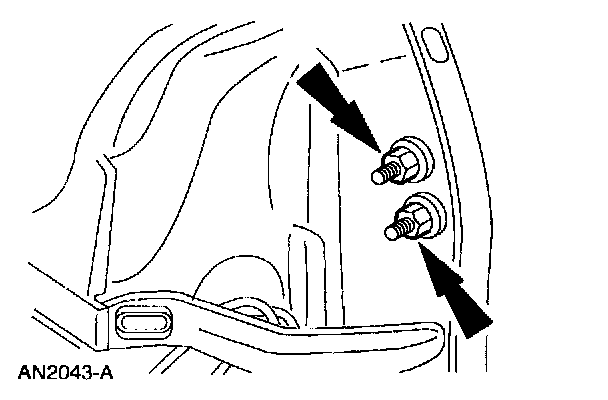

2. Loosen the nuts.







3. Adjust the striker so the liftgate is flush.

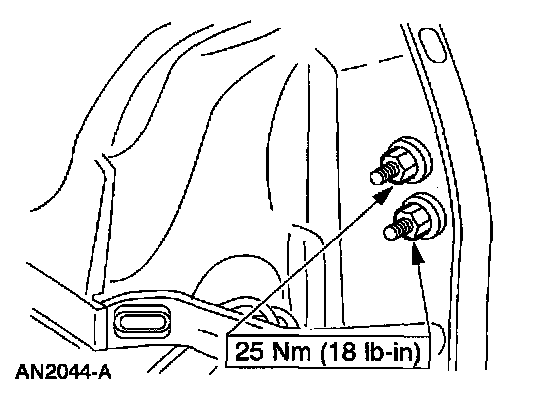

4. Tighten the striker retaining nuts.
