Liftgate

REMOVAL
1. Remove the liftgate door trim panel.

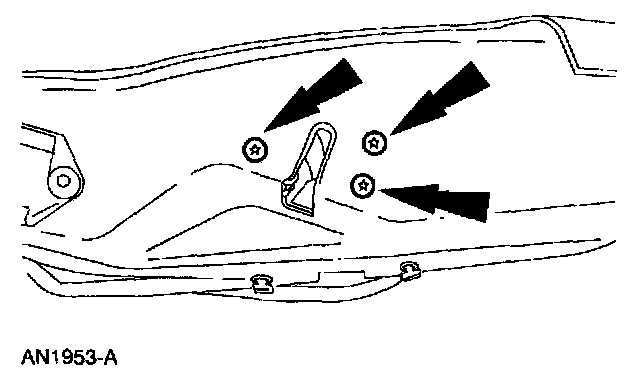

2. Remove the screws.
3. Remove the liftgate latch from the liftgate door.

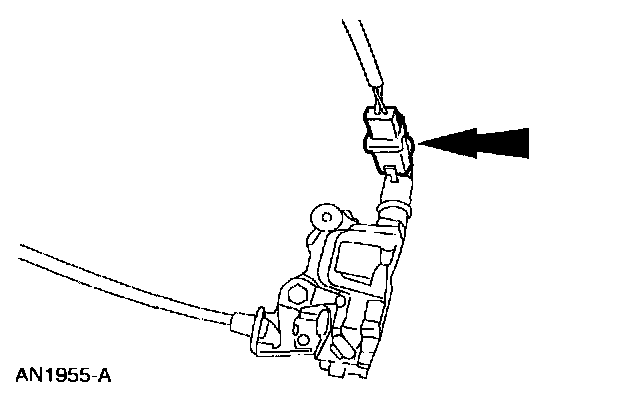

4. Disconnect the connector.

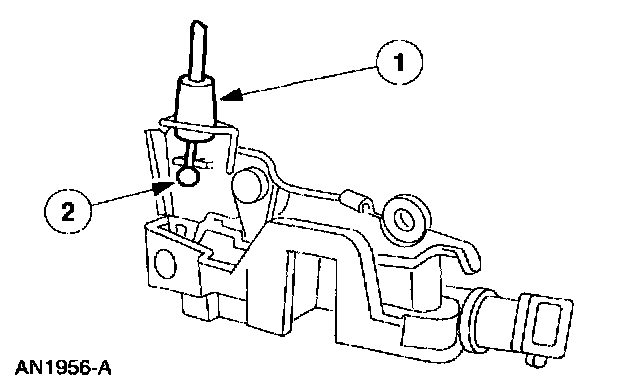

5. Release the cable.
1 Release the cable from the bracket housing.
2 Release the cable.

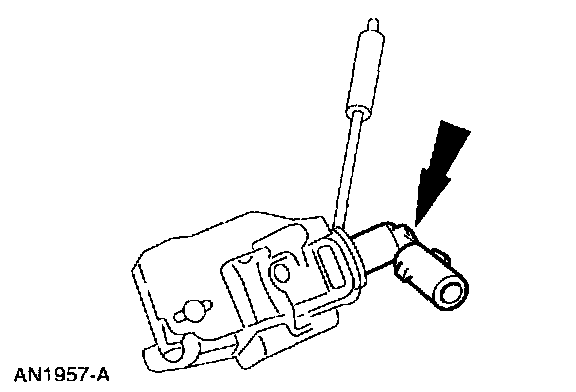

6. Remove the door ajar switch.

INSTALLATION

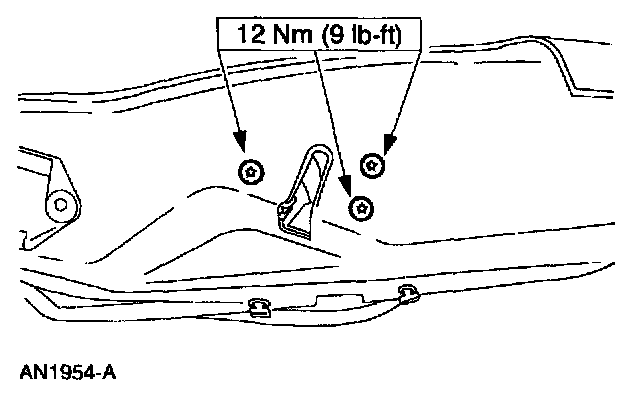

1. To install, reverse the removal procedure.
