Trunk / Liftgate Interior Trim Panel: Service and Repair

TRIM PANEL - LIFTGATE DOOR

Removal







1. Remove the upper trim panel.

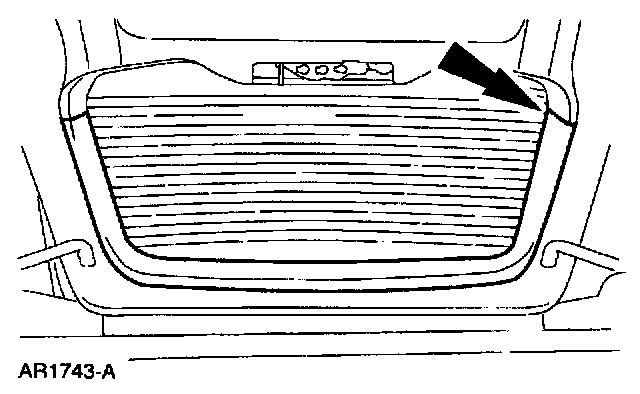

2. Remove the liftgate garnish molding.

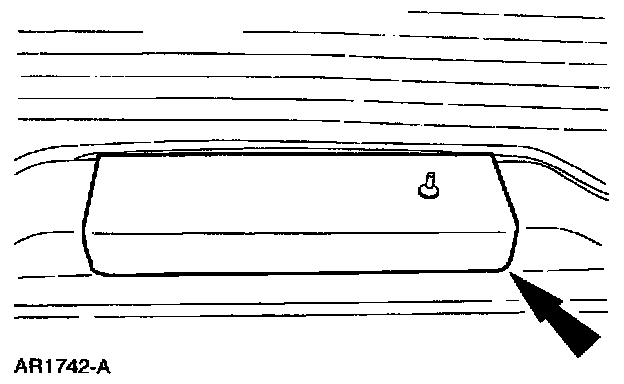

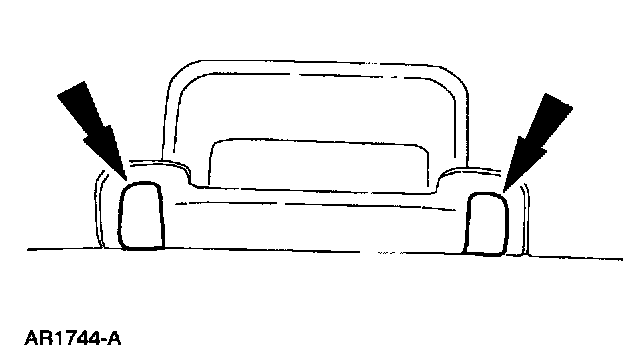

3. Remove the interior liftgate pull handle screw covers.

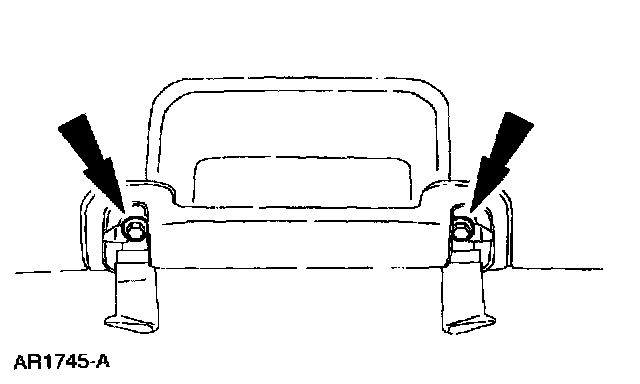

4. Remove the liftgate handle screws.

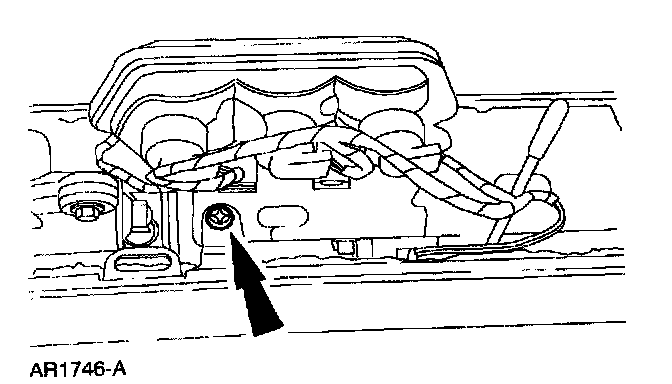

5. Remove the liftgate inside trim panel screw.

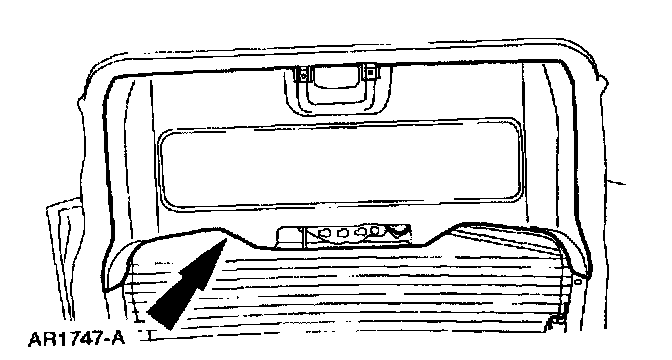

6. Remove the liftgate inside trim panel (42906).

Installation
1. To install, reverse the removal procedure.
