Bumper: Description and Operation

BUMPERS

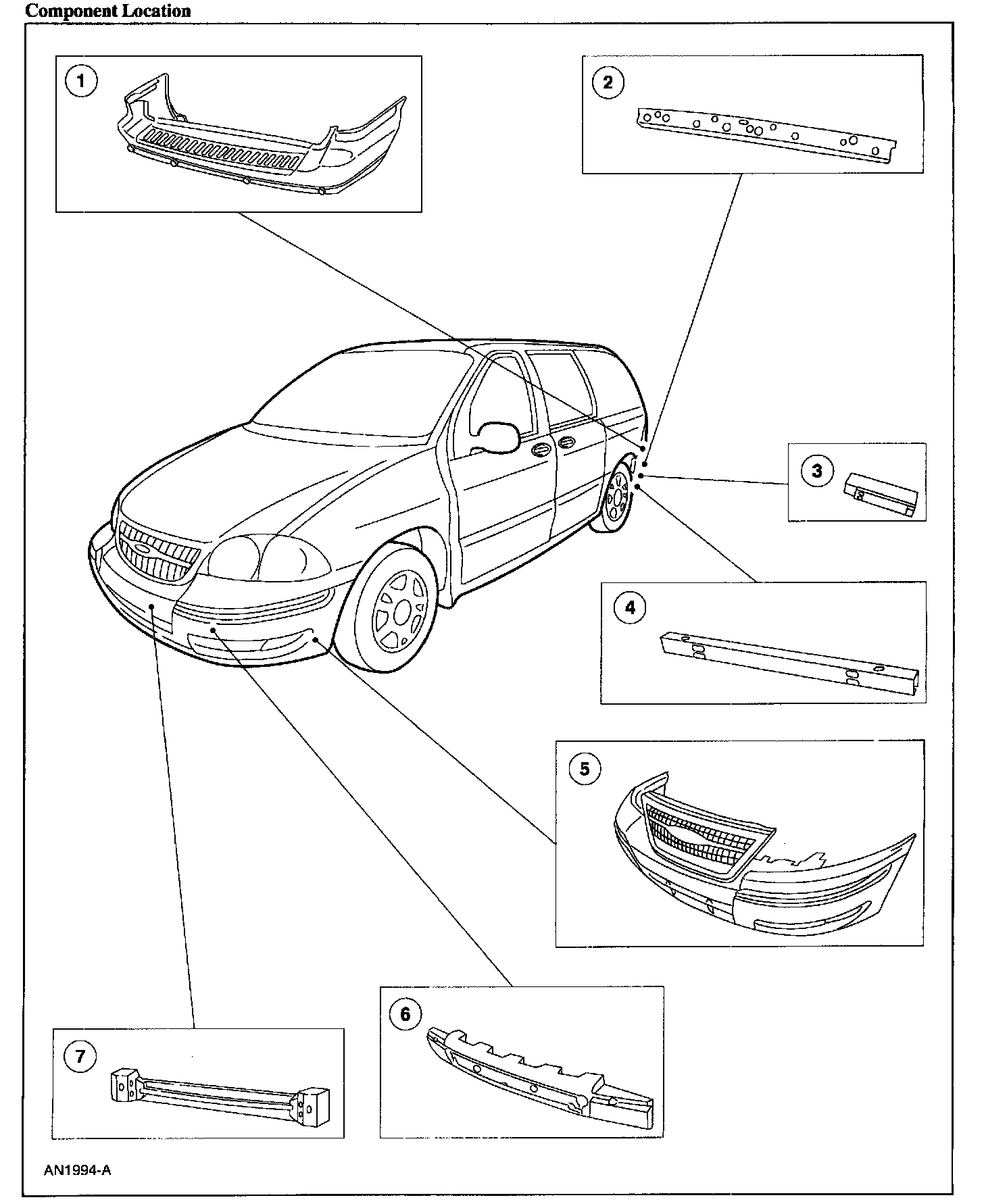

Component Location (Part 1):

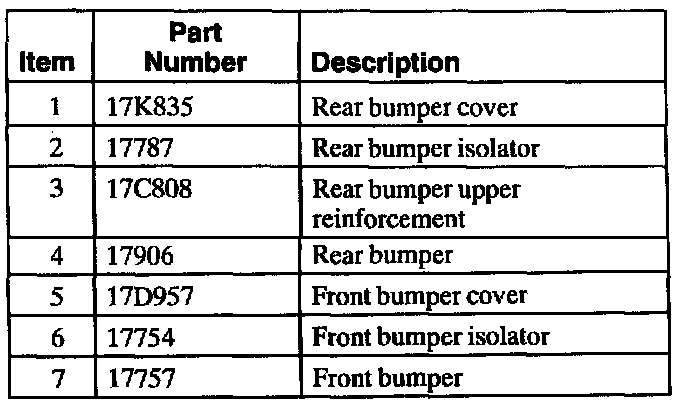

Component Location (Part 2):

Parking Aid Sensing System
The parking aid sensing system consists of the following items:
- four independent sensors
- four bezels; two inboard bezels, LH bezel, RH bezel
- four color-coded retainer clips; two center clips, LH retainer clip, RH retainer clip
- one wiring harness
