Switch - Liftgate Disarm

REMOVAL

1. Remove the liftgate trim panel.
2. Position the watershield aside.

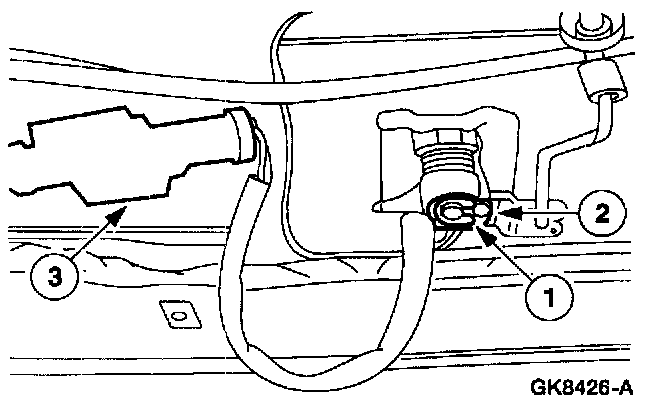

3. Remove the liftgate lock cylinder disarm switch.
1 Remove the "E" clip.
2 Remove the lock rod actuator.
3 Disconnect the electrical connector.

INSTALLATION







1. To install, reverse the removal procedure.

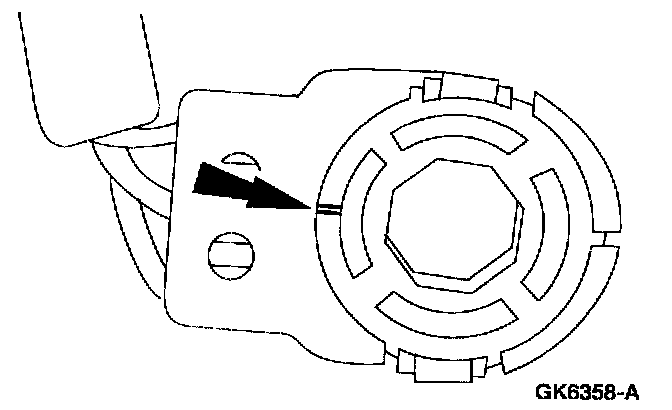

NOTE: The liftgate lock cylinder disarm switch locator mark must be positioned towards the harness side of the switch prior to installation.
