Switch - Driver Door Disarm

REMOVAL

NOTE: Driver door shown, passenger door similar.

1. Remove the driver door panel.
2. Position the watershield aside.







3. Remove the door disarm switch.
1 Remove the "E" clip.
2 Remove the lock rod actuator.
^ Disconnect the electrical connector.

INSTALLATION







1. To install, reverse the removal procedure.

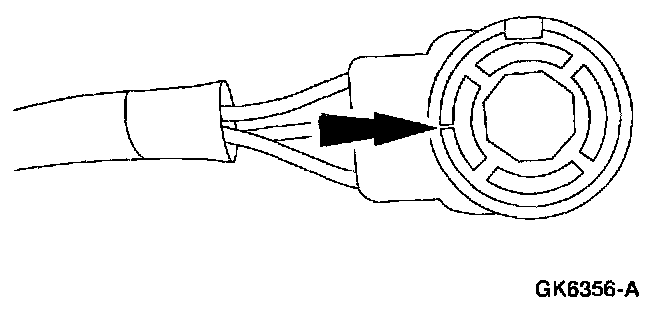

NOTE: The door disarm switch locator mark must be positioned towards the harness side of the switch prior to installation.
