Home
>>
Ford Truck
>>
2000
>>
Ranger 4WD V6-3.0L VIN V Flex Fuel
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Right Window Switch
Right Window Switch

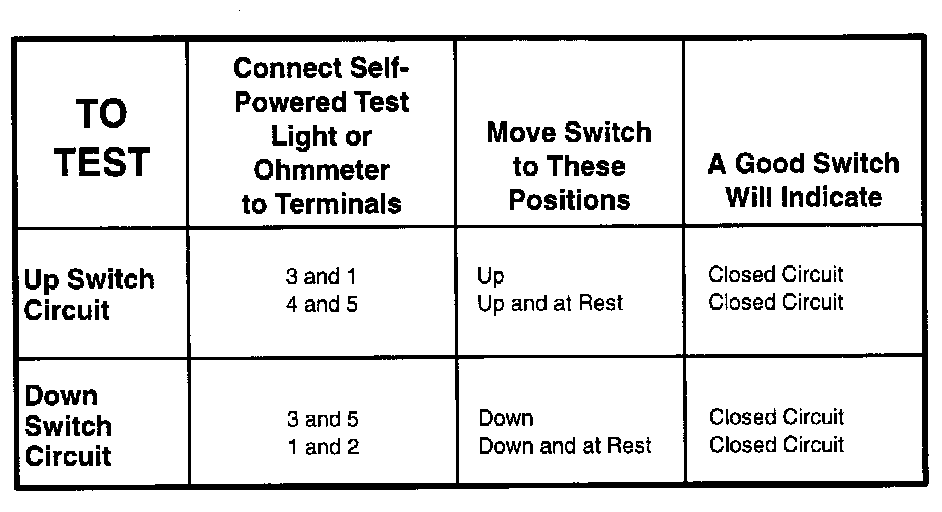

Component Testing Procedure:

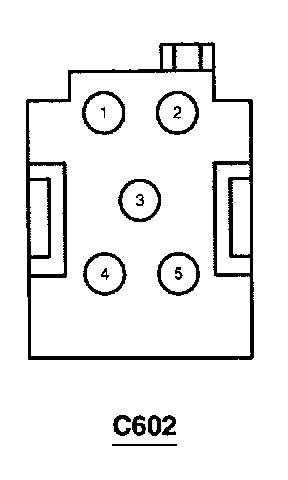

Terminals:
Schematic:
