Installation

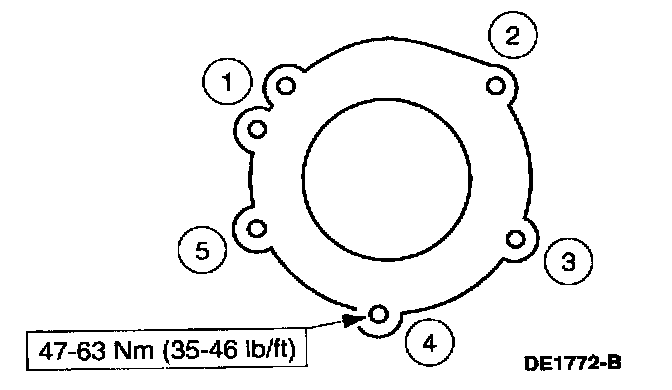

1. Follow the removal procedure in reverse order.

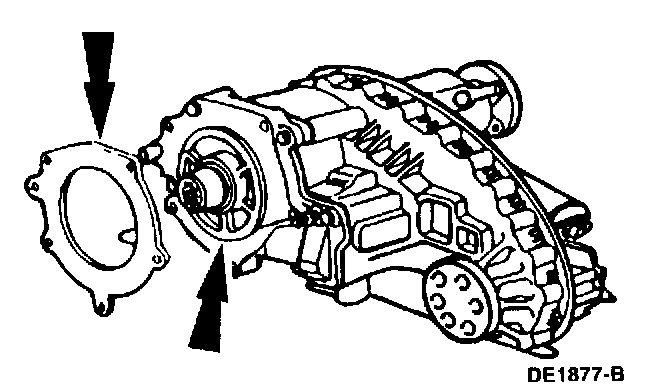

2. Install a new gasket on the front of the transfer case.
3. If drained, refill the transfer case with Motorcraft MERCON Multipurpose Automatic Transmission Fluid WSP-M2C185-A or MERCON equivalent.
