Flywheel Runout Check

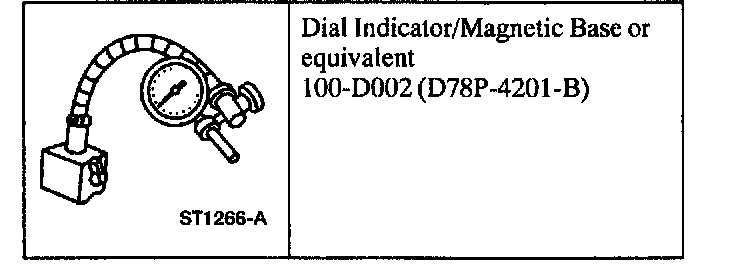

Special Tools:

1. Mount the Dial Indicator with Magnetic Base so that the indicator contact point rides on the clutch disc contact surface.





2. Turn the flywheel; if the runout exceeds the maximum allowance, replace the flywheel.
