Pilot Bearing: Service and Repair

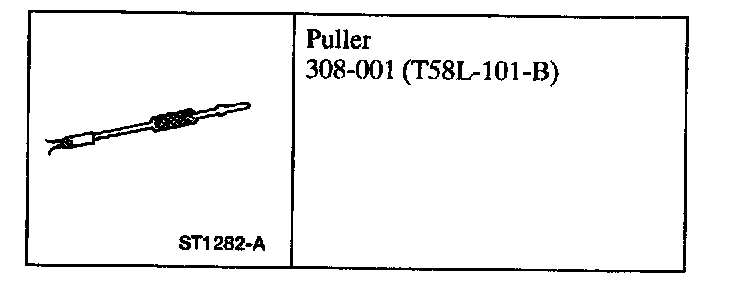

Special Tools:

Removal
1. Remove the transmission.
2. Remove the clutch disc and the clutch pressure plate.

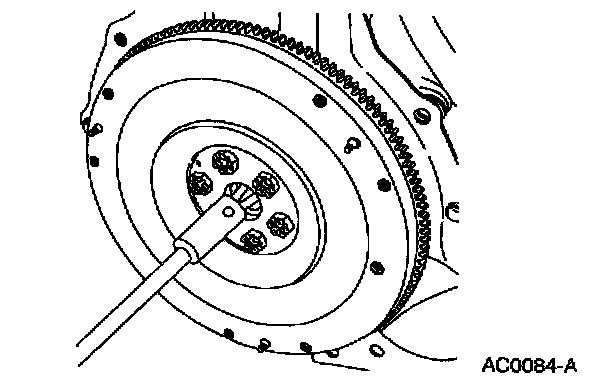

3. Use the puller to remove the pilot bearing from the crankshaft.

Installation

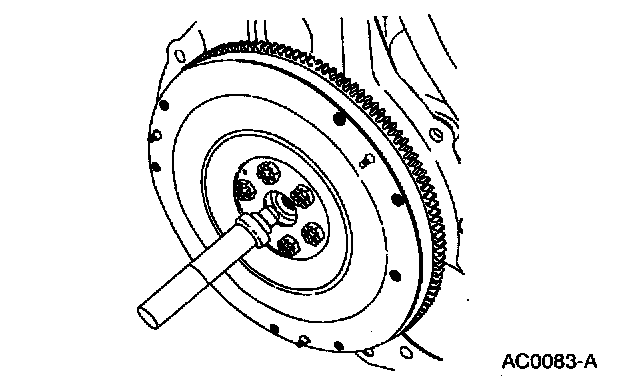

1. Install pilot bearing into the crankshaft.
2. Install the clutch disc and the clutch pressure plate.
3. Install the transmission.
