Transmission

Special Tools:

Note: If the transmission is to be removed for a period of time, support the engine with a safety stand and a wood block.

All Applications
1. Disconnect the battery ground cable.

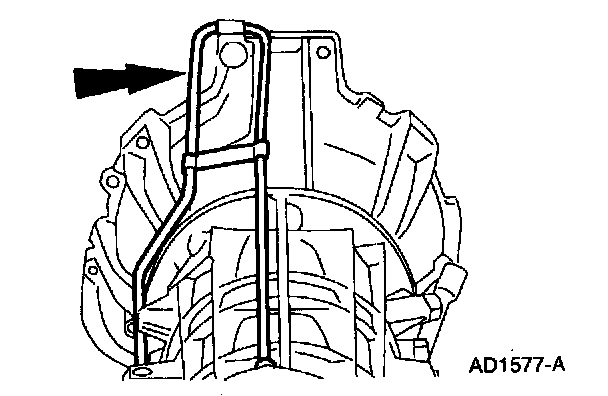

2. Remove the fluid level indicator.

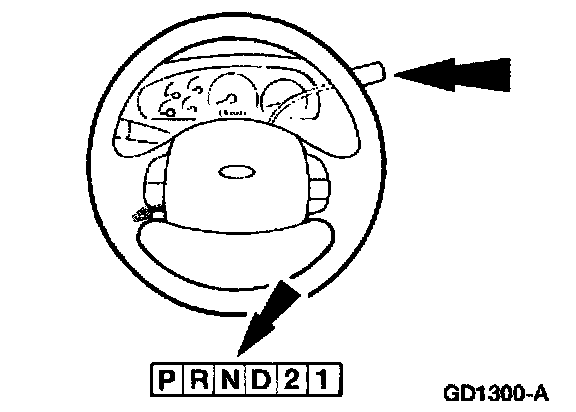

3. Place the selector lever in NEUTRAL position.

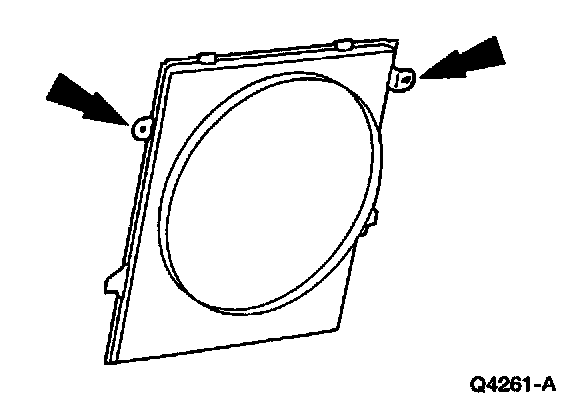

4. Remove the two bolts retaining the fan shroud to the radiator.
5. Raise and support the vehicle. For additional information
6. If transmission disassembly is required; drain the transmission fluid.

4x4 Applications
7. Remove the transfer case.

All Applications

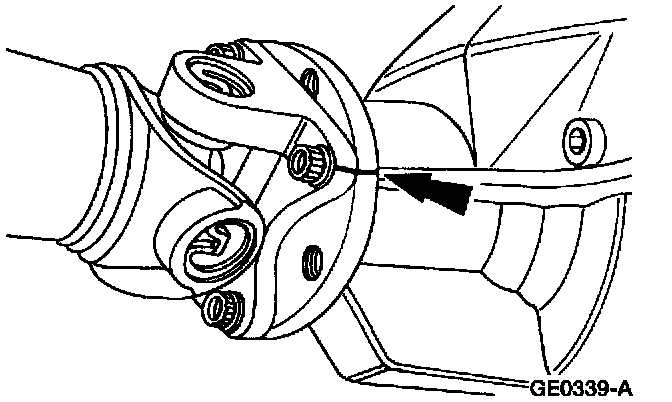

8. To maintain initial driveshaft balance, mark the driveshaft yoke and axle flange, so they may be installed in their original alignment.

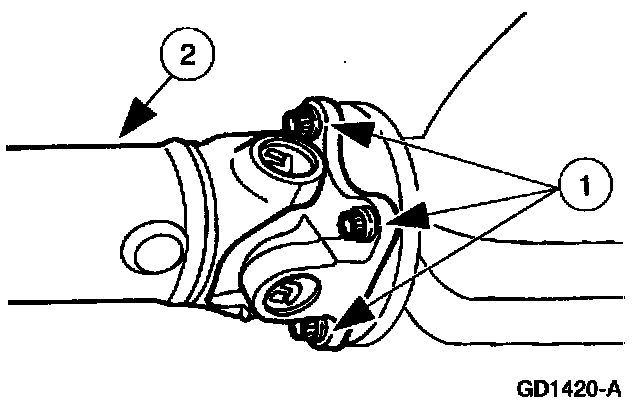

9. Remove the rear driveshaft.
1 Remove the four bolts.
2 Remove the driveshaft.
10. Remove the starter motor.

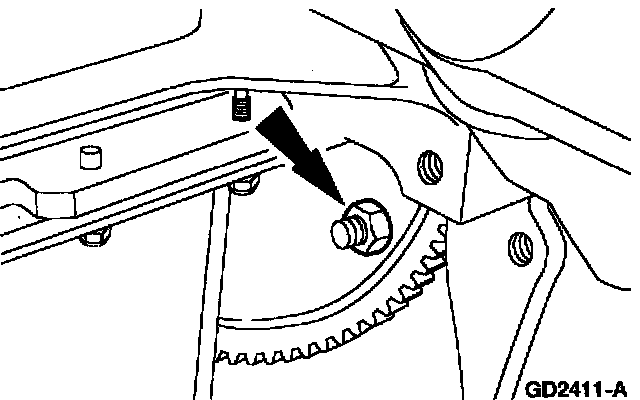

11. Note: Mark the torque converter and the flexplate for proper alignment at reinstallation.

Remove the four nuts.
- Rotate the crankshaft/flexplate assembly for access to all the nuts.

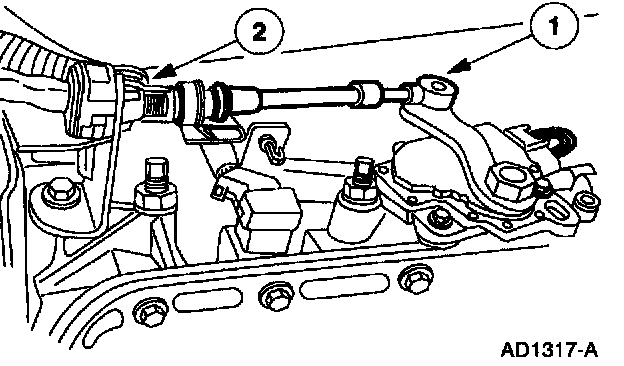

12. Disconnect the shift cable.
1 Disconnect the shift cable from the manual control lever.
2 Disconnect the shift cable from the bracket.





13. Remove the transmission wiring harness.
1 Disconnect the heated oxygen sensor (H02S) connector.
2 Disconnect the transmission connector.
3 Disconnect the digital Transmission Range (TR) sensor connector.
14. Remove the three way catalytic converter.

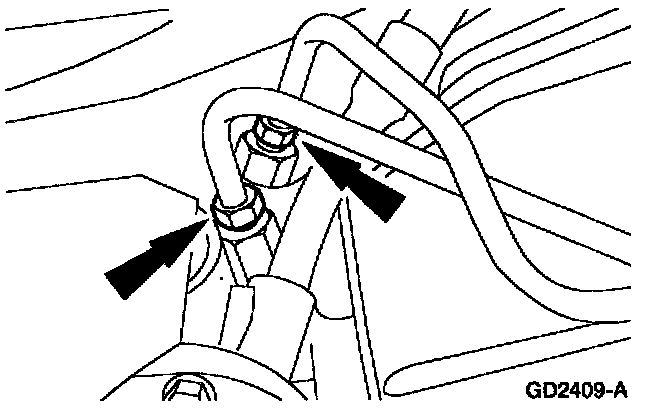

15. CAUTION: Care should be taken not to bend or damage the cooler lines.

Hold the ease fitting and remove the transmission cooler lines.

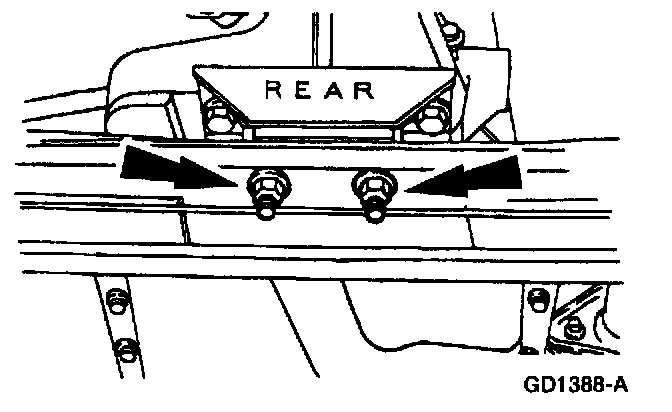

16. Remove the nuts.





17. CAUTION: Do not allow the transmission to hang freely.

Position the High-Lift lack under the transmission. Raise and support the transmission.

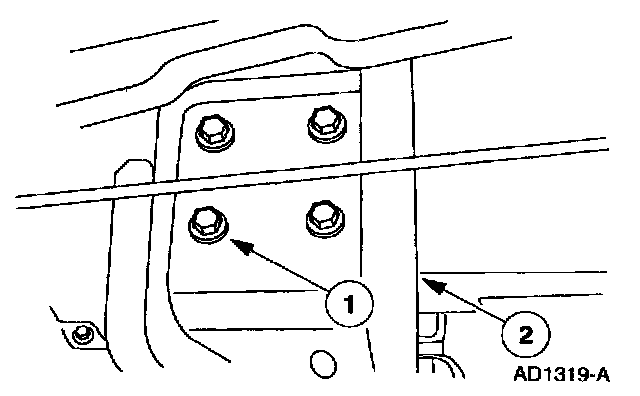

18. Remove the crossmember.
1 Remove the eight bolts (four each side).
2 Remove the crossmember.

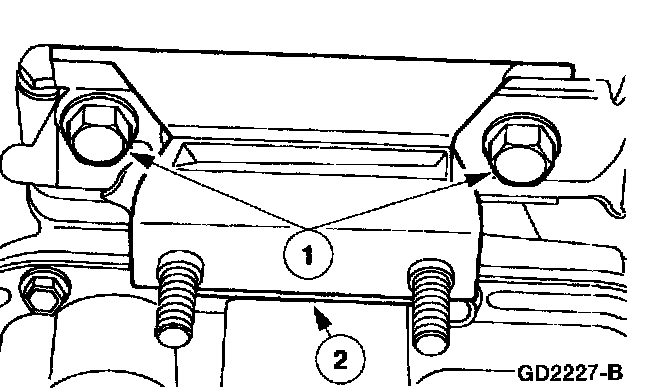

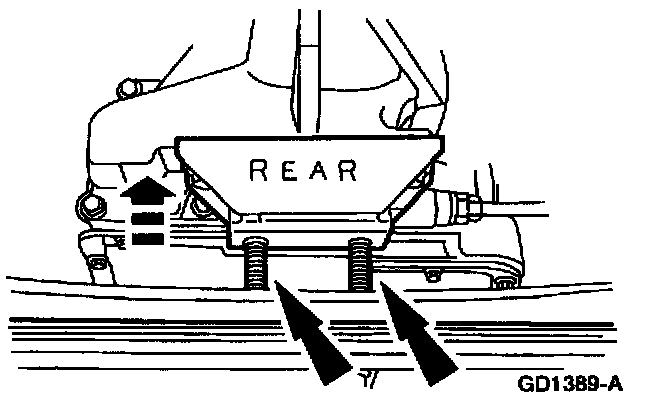

19. Remove the transmission mount.
1 Remove the screws.
2 Remove the transmission mount.

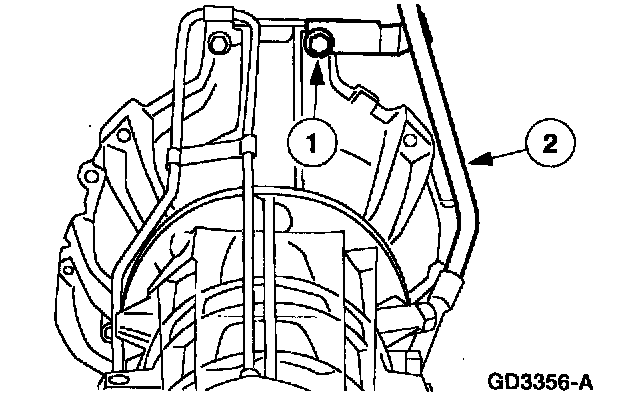

20. Remove the transmission upper fill tube.
1 Remove the screw.
2 Disconnect the transmission upper fill tube.





21. Note: Lower the High-Lift Transmission Jack to gain access to screws.

Remove the seven screws.

4x4 Applications





22. On 4x4 models remove the vent tube assembly.

All Applications





23. WARNING: The torque converter is heavy and may result in injury if it falls out of the transmission. Secure the torque converter in the transmission. Failure to follow these instructions may result in personal injury.

Install the Torque Converter Holding Tool before lowering the transmission from the vehicle.

24. WARNING: Secure the transmission to the transmission jack with a safety chain. Failure to follow these instructions may result in personal injury.

Lower the transmission.
25. Carry out Transmission Fluid Cooler Back Flushing/Cleaning.
