Alternator Pulley / Clutch: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information refer to Battery Service and Repair.
2. Remove the Generator (GEN). For additional information, refer to Alternator Service and Repair.

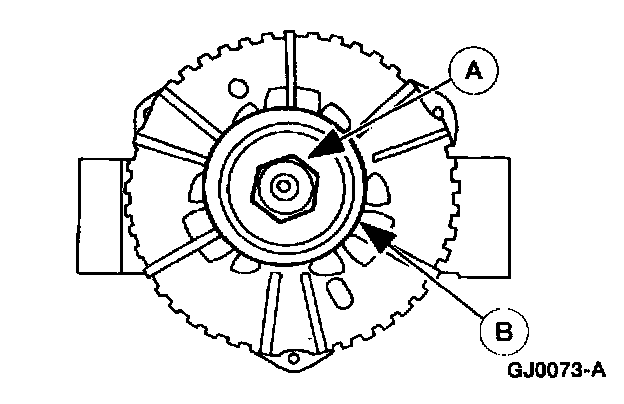

3. Remove the (A) nut and the (B) generator pulley.

INSTALLATION












1. To install, reverse the removal procedure.
