EGR Electronic Vacuum Regulator Solenoid: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

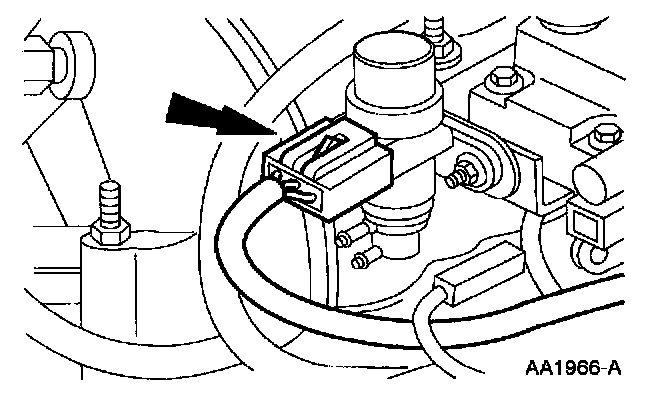

2. Disconnect the electrical connector.

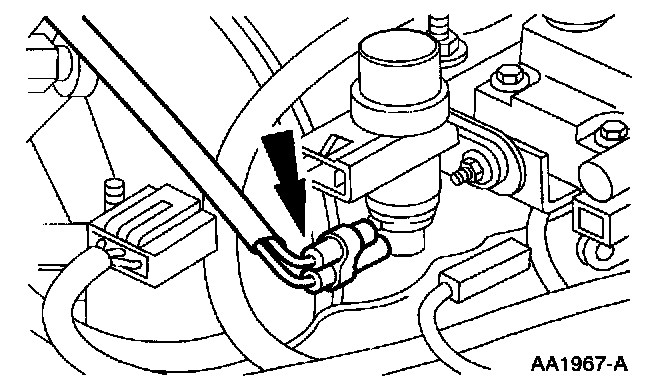

3. Disconnect the hoses.

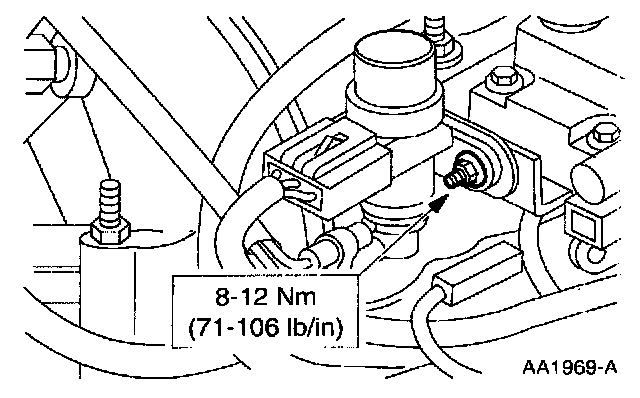

4. Remove the nut and remove the EGR vacuum regulator solenoid.

INSTALLATION
1. To install, reverse the removal procedure.
