Vacuum Reservoir HVAC: Service and Repair

REMOVAL
1. If the A/C vacuum reservoir tank and bracket is visible from above in the engine compartment, perform steps 2 through 4. If the A/C vacuum reservoir tank and bracket is not visible in the engine compartment, perform steps 5 through 8.

NOTE: The A/C vacuum reservoir tank and bracket is located either on or beneath the RH front fender splash shield.

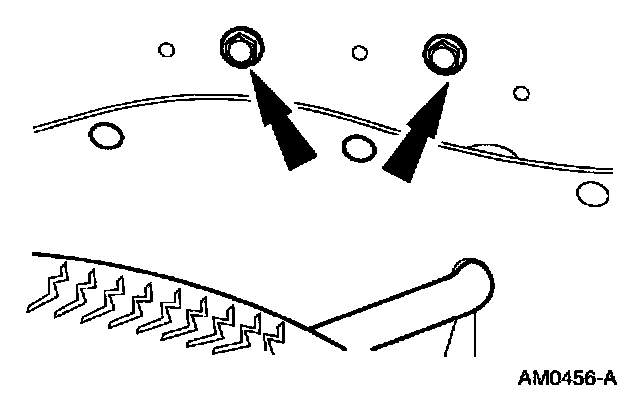

2. Remove the screws and the A/C vacuum reservoir tank and bracket.

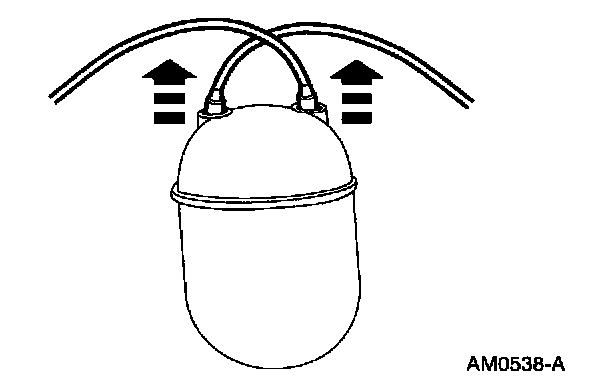

3. Disconnect the vacuum supply and outlet hoses.

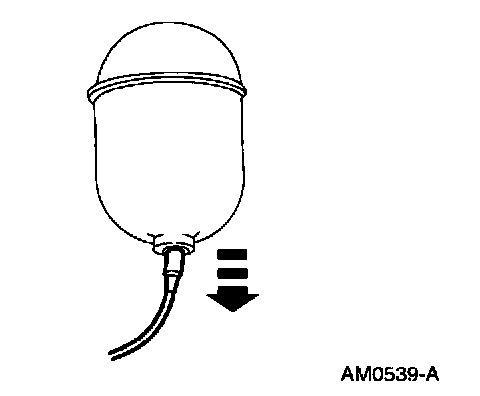

4. Disconnect the vacuum hose from the back of the tank if equipped with 4-wheel drive.
5. Remove the engine Air Cleaner (ACL); refer to Fuel Delivery and Air Induction.
6. Remove the RH front fender splash shield.

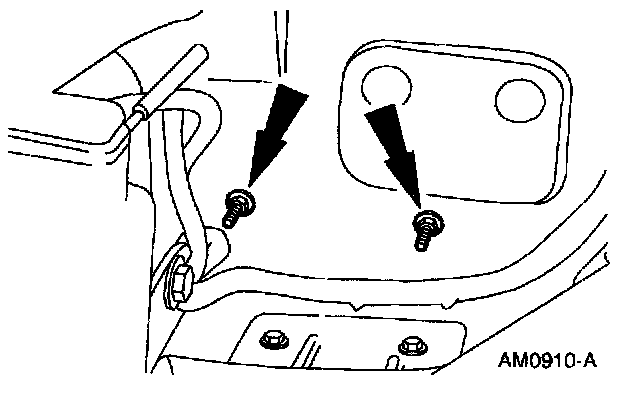

7. Remove the nuts and remove the A/C vacuum reservoir tank and bracket.







8. Disconnect the vacuum supply and outlet hoses.

INSTALLATION

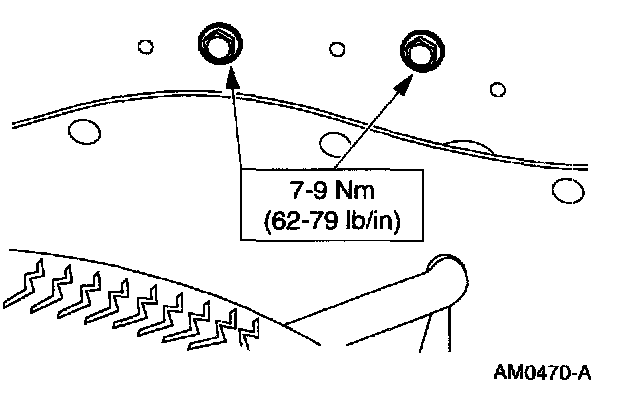

1. Follow the removal procedure in reverse order.
