Hose/Line HVAC: Service and Repair

REMOVAL
1. Recover the refrigerant.

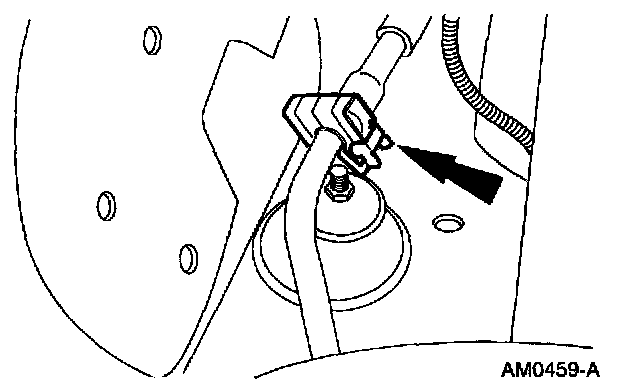

2. Disconnect the condenser to evaporator tube from the A/C evaporator core; refer to the Spring Lock Coupling Disconnect and Connect general procedures. Spring Lock Coupling Connect and Disconnect Procedure

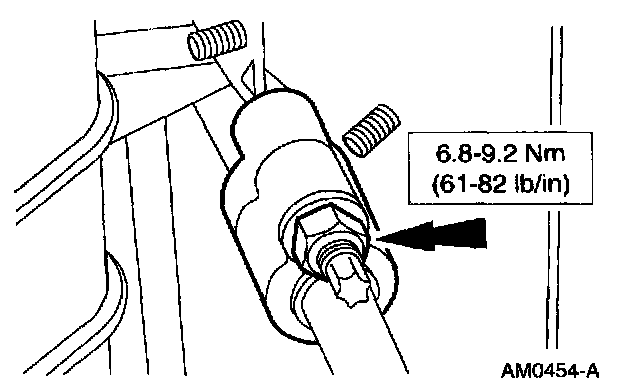

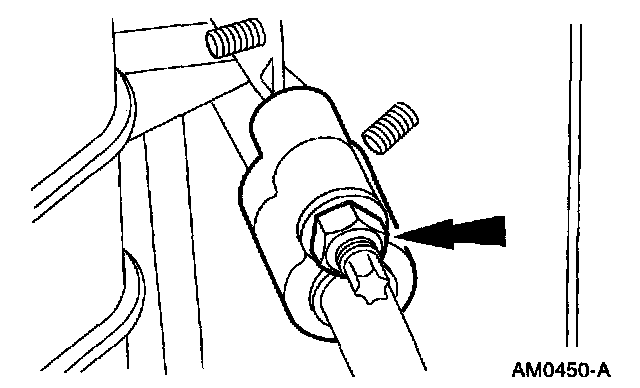

3. Disconnect the condenser to evaporator tube from the A/C condenser core and remove the condenser to evaporator tube.

INSTALLATION







1. Follow the removal procedure in reverse order.
^ Lubricate the O-ring seal with Motorcraft YN-12c refrigerant oil or equivalent meeting Ford specification WSH-M1C231-B.
