Passenger Side

REMOVAL
1. Remove the RH instrument panel register; refer to Register-RH.
2. Remove the passenger side air bag module; refer to Air Bag Systems.

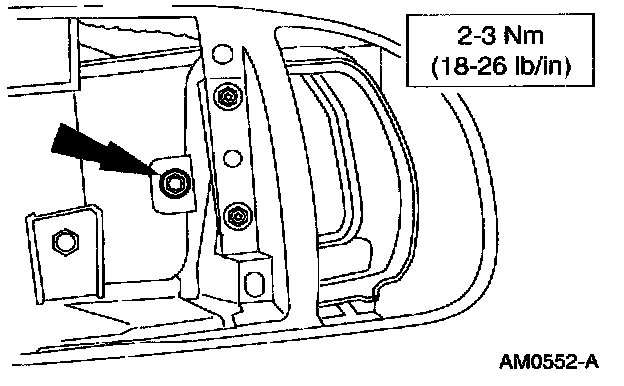

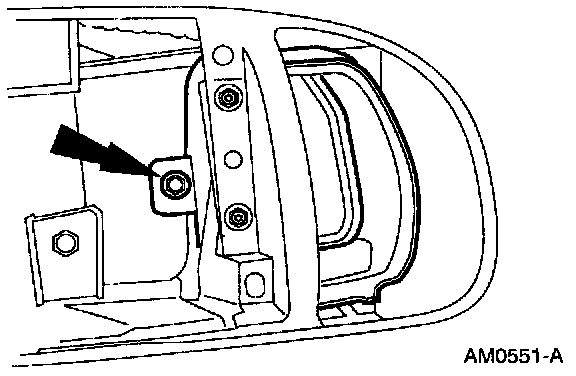

3. Remove the two screws and remove the RH instrument panel register duct.

INSTALLATION







1. Follow the removal procedure in reverse order.
