Center

Radio Removing Tool:

SPECIAL SERVICE TOOL(S)


REMOVAL

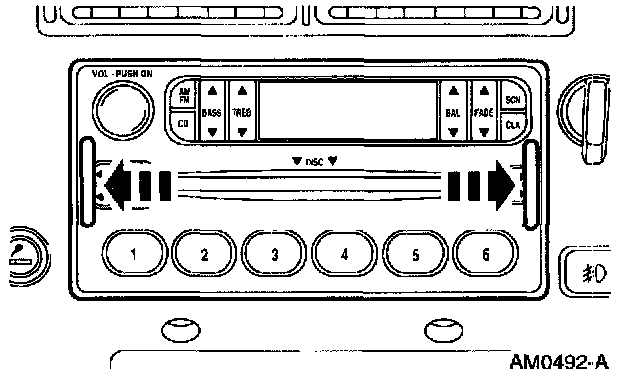

1. Use the Radio Removing Tool to remove the radio chassis.

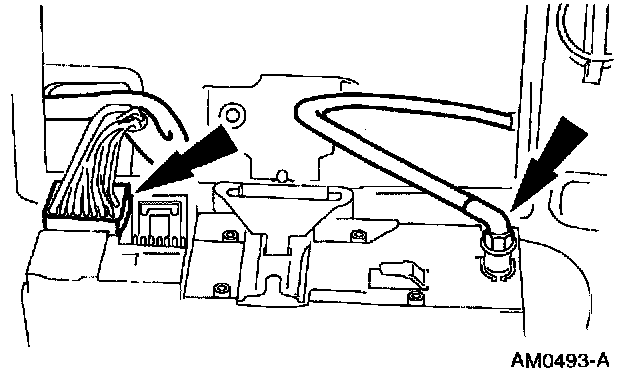

2. Disconnect the antenna lead and the wire harness connectors.

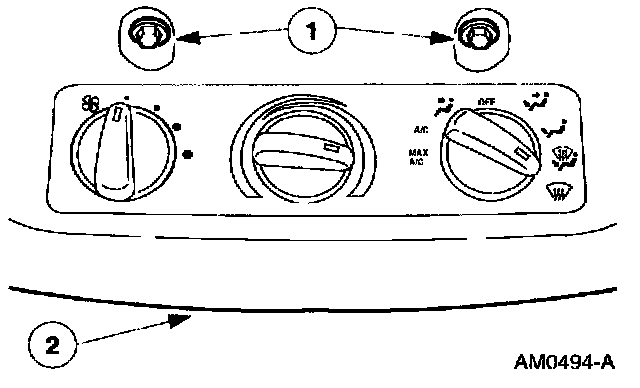

3. Remove the instrument panel finish panel.
1 Remove the screws.
2 Disengage the spring clips and remove the instrument panel finish panel.







4. Disconnect the wire harness connectors.

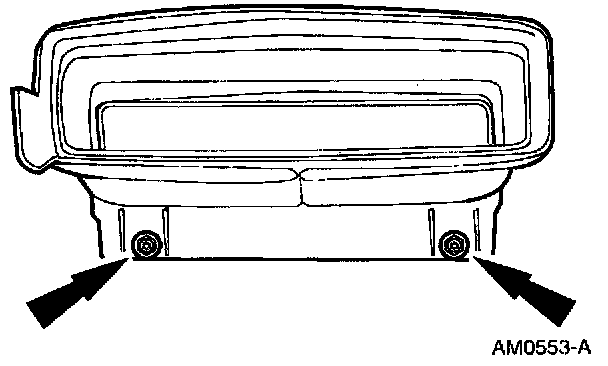

5. Remove the screws and remove the center instrument panel register duct.

INSTALLATION

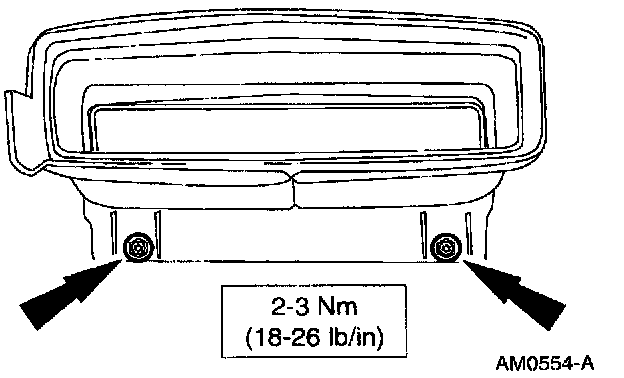

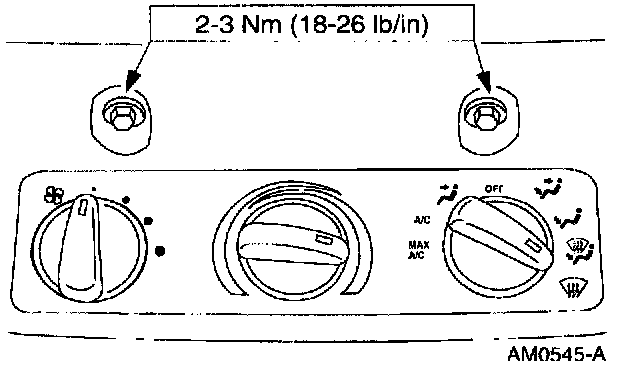

1. Follow the removal procedure in reverse order.
