LH

Removal
1. Remove the upper intake manifold.
2. Disconnect the LH spark plug wires.

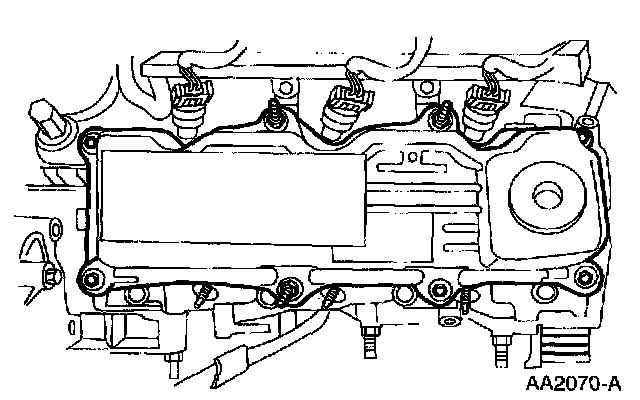

3. Remove the five bolts and the three stud bolts.

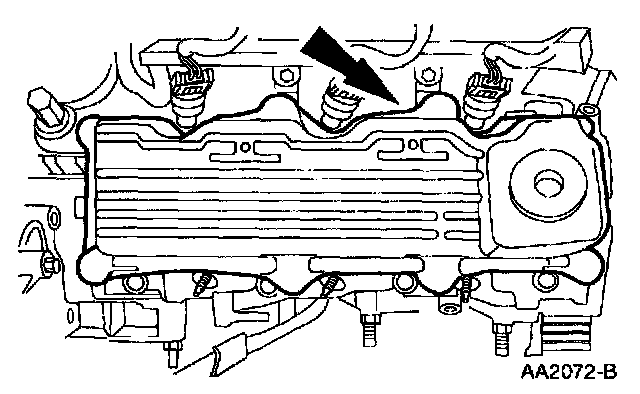

4. Note: To prevent stretching the valve cover gasket, loosen silicone gasket and sealant from the cylinder head by sliding a flat knife between the valve cover gasket and cylinder head.

Remove the valve cover.

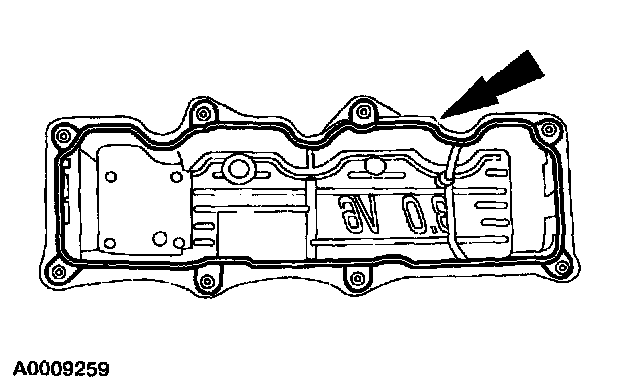

5. Remove the valve cover gasket, if required.

Installation





1. Note: Do not clean the valve cover gasket with solvent. Damage to the valve cover gasket may occur.

Clean all mating surfaces.

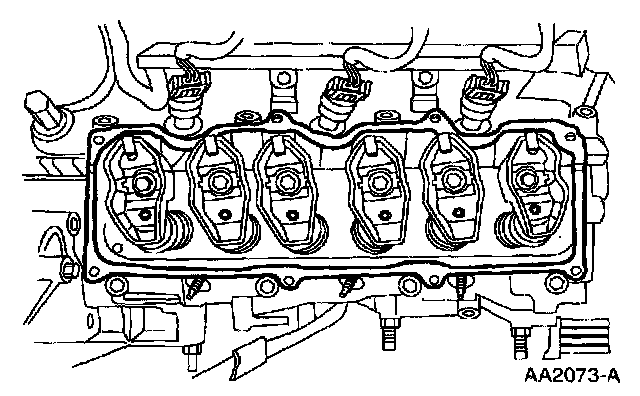

2. If removed, install the valve cover gasket.





3. Note: If the valve cover is not installed within four minutes, remove the sealant and reapply

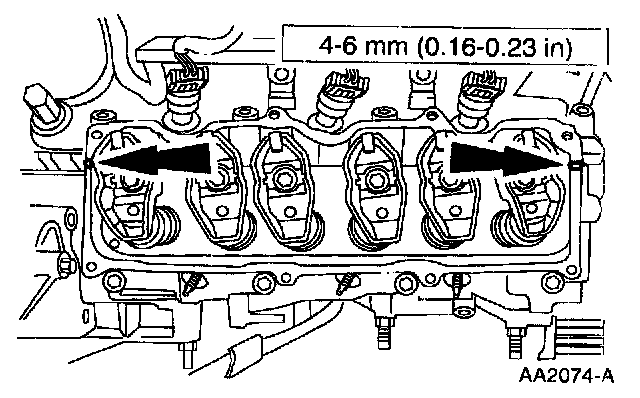

Apply a bead of Silicone Gasket and Sealant F7AZ-19554-EA or equivalent meeting Ford specification WSE-M4G323-A4 in two places where the cylinder head and cylinder block meet.





4. Install the valve cover.
- Position the valve cover.

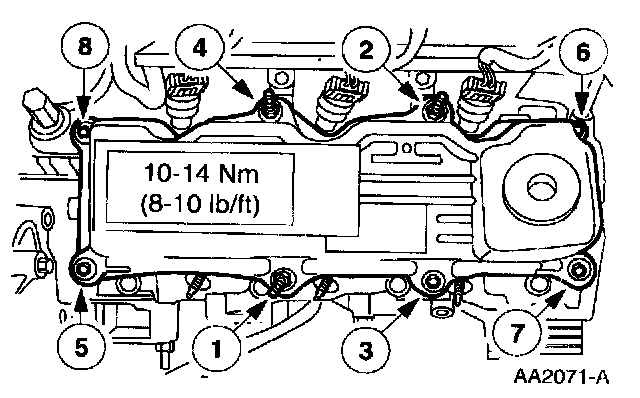

- Tighten the five bolts and the three stud bolts in the sequence shown.
5. Connect the LH spark plug wires.
6. Install the upper intake manifold.
