Backing Plate: Service and Repair

Removal

1. Remove the brake shoes and linings.

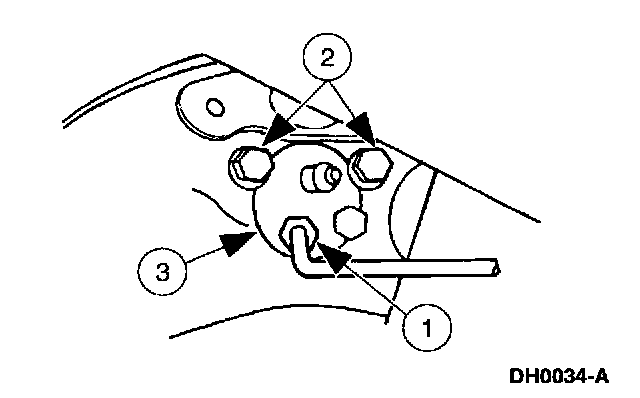

2. Remove the rear wheel cylinder.
1 Disconnect the brake line fitting.
2 Remove the two rear wheel cylinder bolts.
3 Remove the rear wheel cylinder.

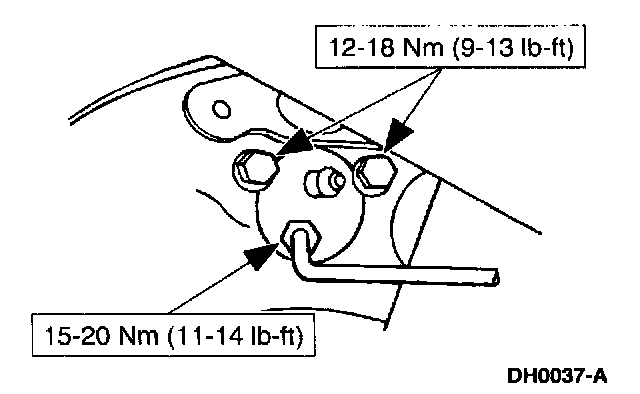

Installation





1. Follow the removal procedure in reverse order.
2. Bleed the brake system.
