Brake Disc Shield

Removal

1. Remove the brake disc.





2. Remove the brake disc shield.

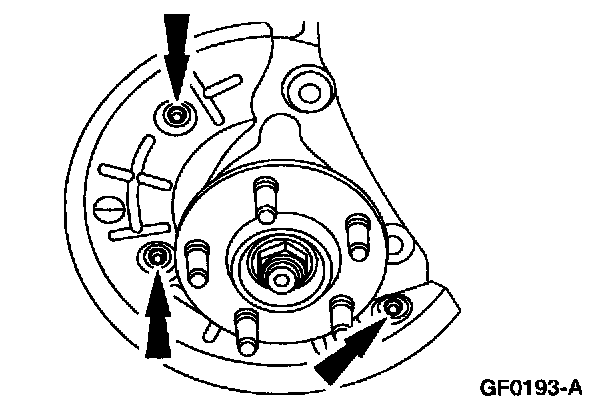

^ Remove the three bolts and remove the brake disc shield.

Installation

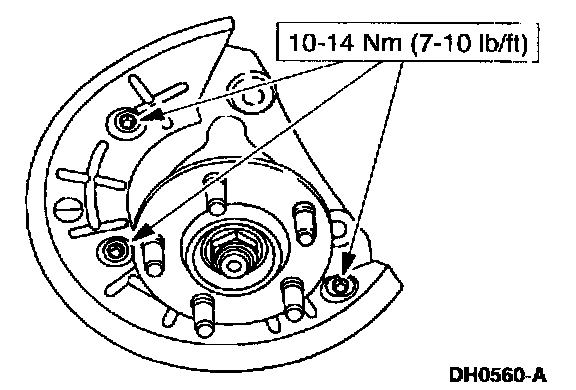

1. Follow the removal procedure in reverse order.
