Base, Front, 60 Percent Portion of 60/40 Split Bench
DISASSEMBLYNOTE: Do not attempt this procedure unless replacement plastic rivets are available.
1. Disassemble the front seat; refer to Seat-Front, 60 Percent Portion of 60/40 Split Bench.
2. Remove the armrest bracket covers.

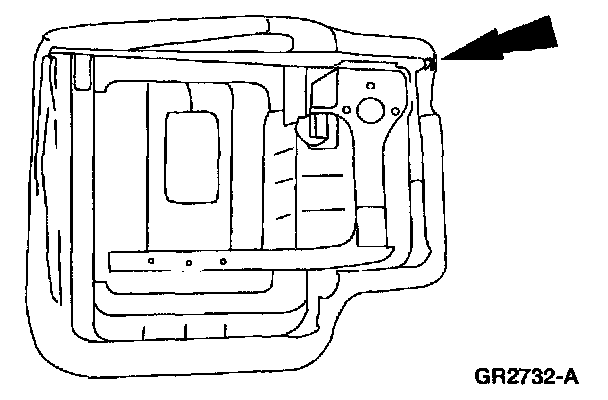

3. Remove the hog ring.

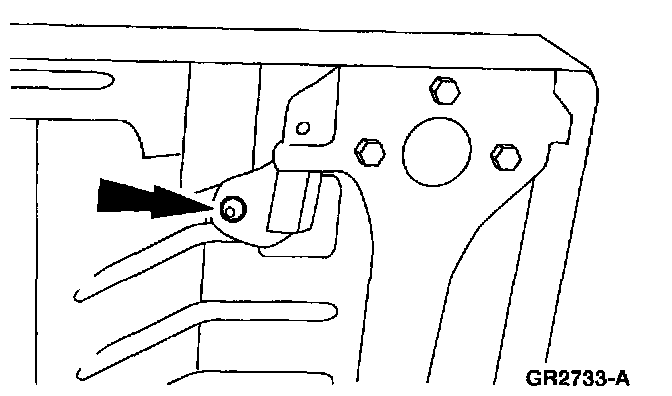

4. Remove the plastic rivet.

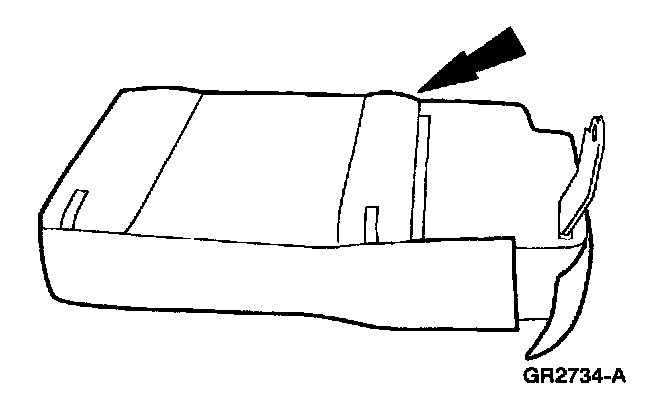

5. Remove the seat cushion trim.
^ Disconnect the seat trim from the hook and loop strips.
CAUTION: Use care when separating the seat cushion trim cover from the hook and loop strips or the hook and loop strips may be torn from the seat cushion foam.

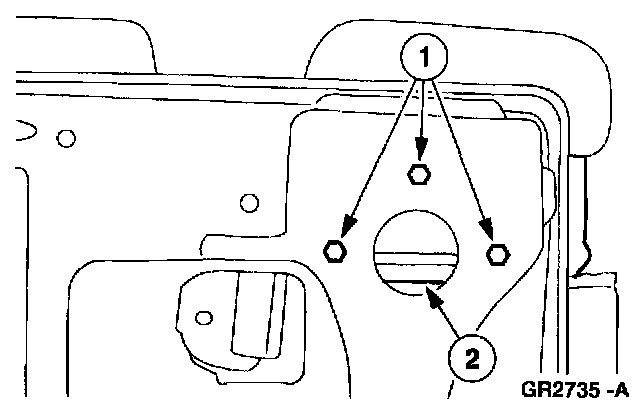

6. Remove the armrest bracket.
1 Remove the bolts.
2 Remove the armrest bracket.
7. Remove the seat base cushion.
ASSEMBLY
1. To assemble, reverse the disassembly procedure.
2. Check the restraint system for correct operation.
