Seat Track: Service and Repair

DISASSEMBLY
1. Remove the front seat tracks; refer to Seat-Front Bucket, 40 Percent Seat or Seat-Front, 60 Percent Portion of 60/40 Split Bench.

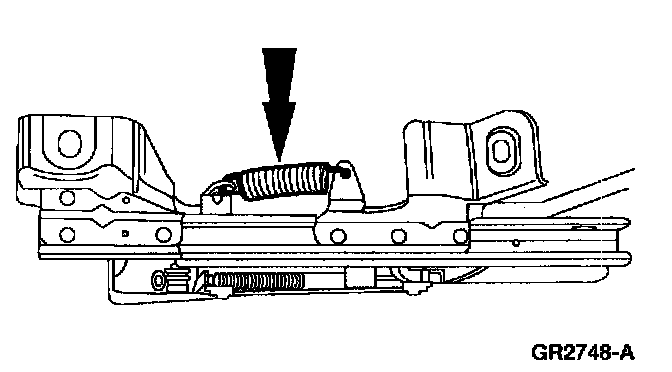

2. If equipped, remove the seat track return spring.

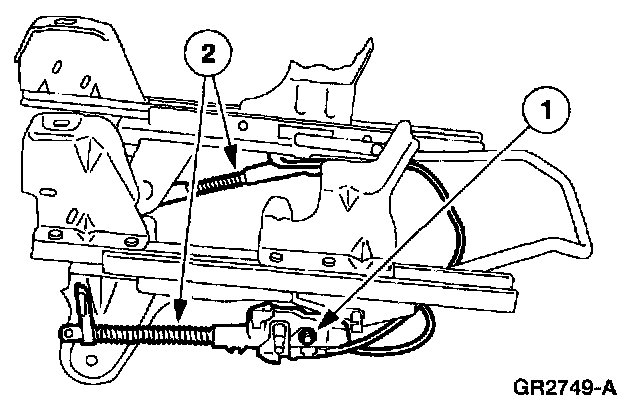

3. Remove the front seat back recliners.
1 Remove the two nuts.
2 Remove the front seat back recliners.

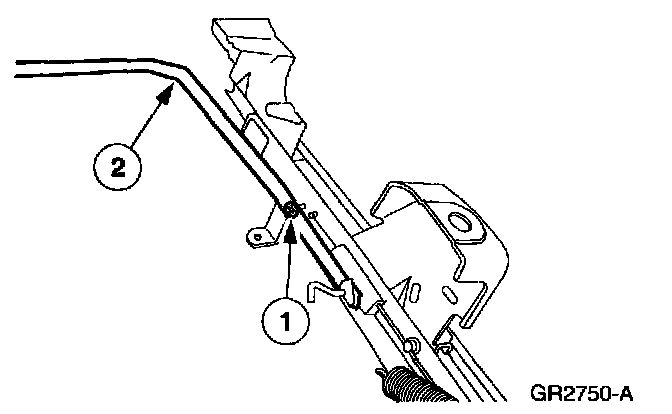

4. Remove the seat track release bar.
1 Remove the two speed nuts.
2 Remove the seat track release bar.

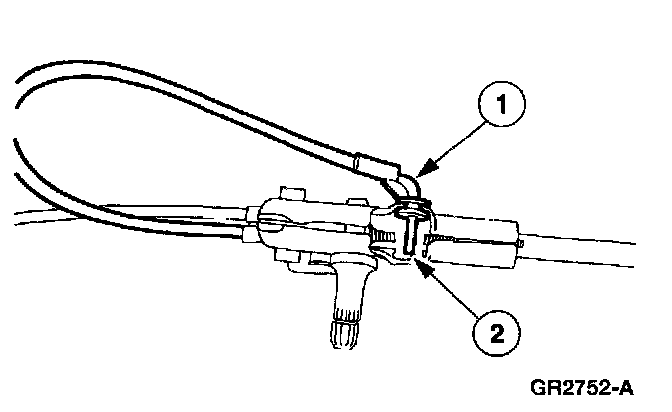

5. Disconnect the inboard end of the seat back recliner link cable.
1 Unhook the cable conduit.
2 Disconnect the inboard end of the seat back recliner link cable.

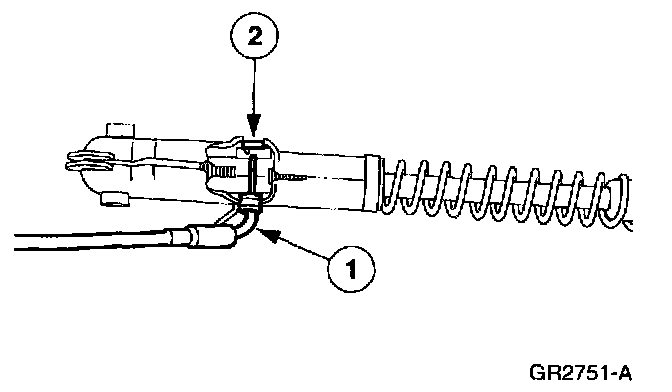

6. Disconnect the outboard end of the seat back recliner link able.
1 Unhook the cable conduit.
2 Disconnect the outboard end of the seat back recliner link cable.

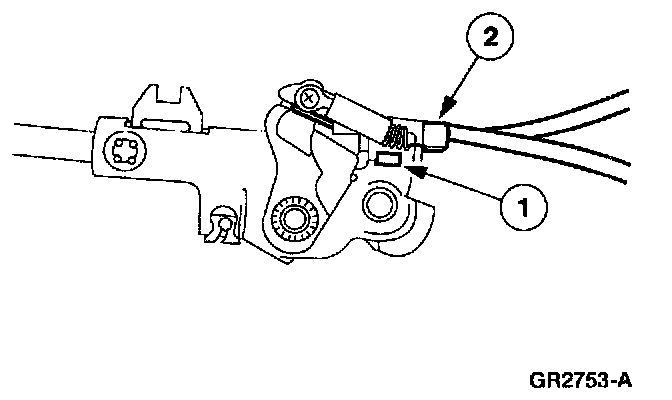

7. Remove the seat back recliner link cable.
1 Release the clip.
2 Remove the seat back recliner link cable.

ASSEMBLY







1. To assemble, reverse the disassembly procedure.
