60/40 Split Bench

DISASSEMBLY
1. Disassemble the front seat; refer to Seat-Front, 60 Percent Portion of 60/40 Split Bench or Seat-Front Bucket, 40 Percent Seat.

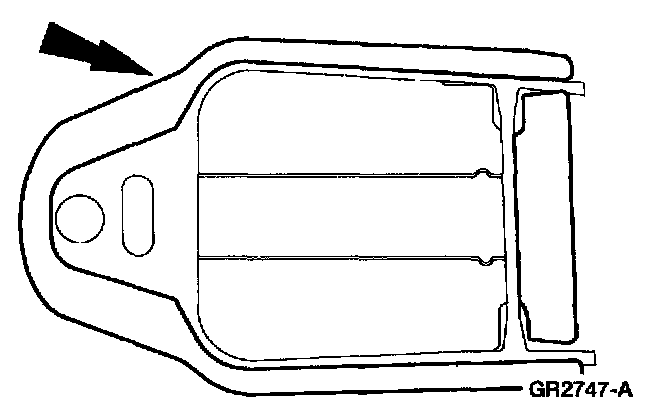

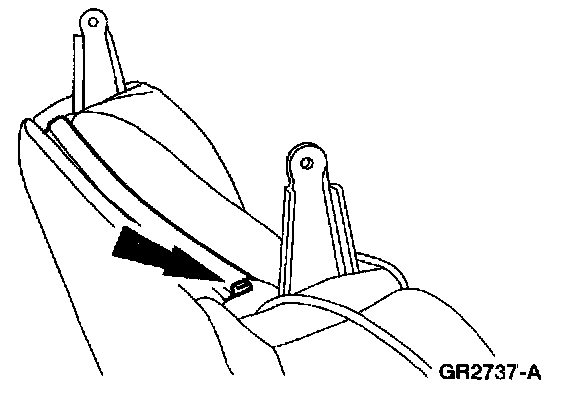

2. Unhook the trim cover retainer.







3. Disengage the hook and loop strips and remove the seat trim.

CAUTION: Use care when separating the seat back trim cover from the hook and loop strips or the hook and loop strips may be torn from the seat back foam.

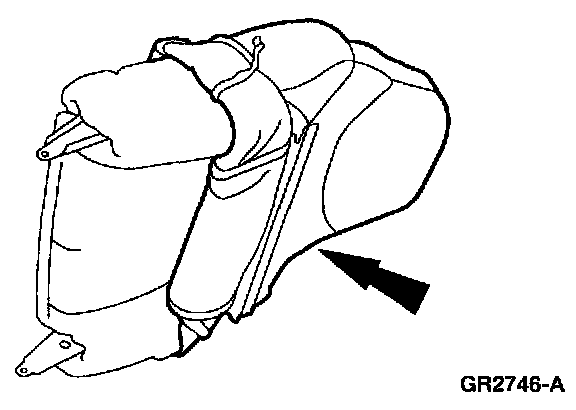

4. Remove the seat back padding from the seat back frame.

NOTE: Be careful when removing the seat back padding because it may be attached to the seat back frame with adhesive.

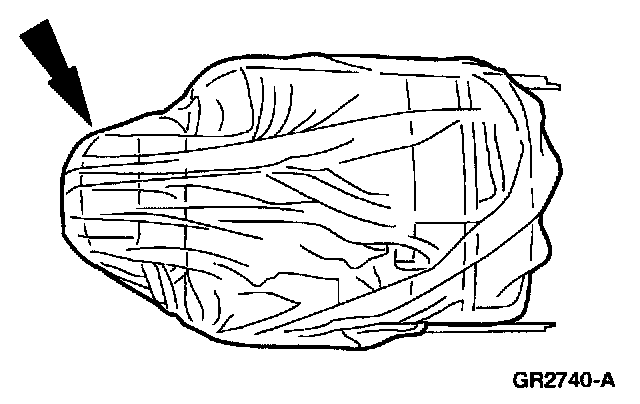

5. Remove the plastic bag;

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
2. Check the restraint system for correct operation.
