Pressure Cutoff Switch

REMOVAL

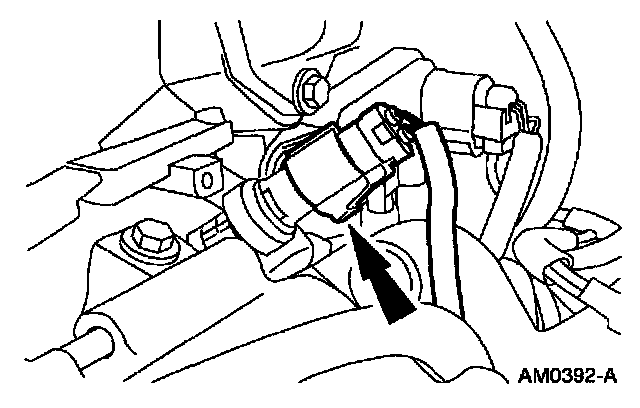

1. Disconnect the electrical connector.

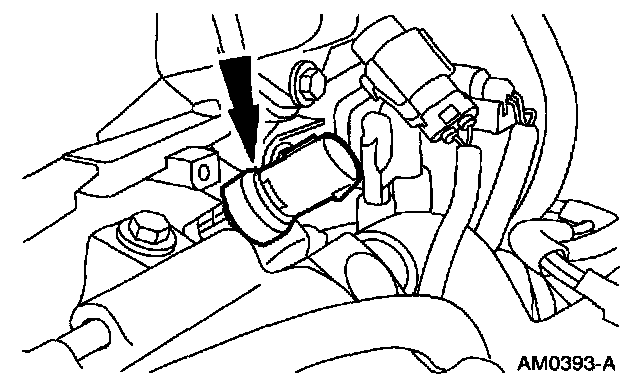

2. Remove the A/C pressure cut-off switch.

INSTALLATION

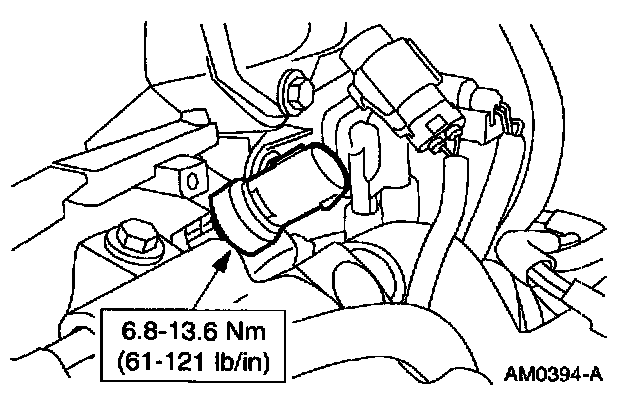

1. Follow the removal procedure in reverse order.
^ Lubricate the O-ring seal with Motorcraft YN-12C refrigerant oil or equivalent meeting Ford specification WSH-M1C231-B.
