Air Conditioning Compressor Bracket

REMOVAL
1. Remove the A/C compressor; refer to Compressor.
2. Remove the power steering pump from the A/C compressor mounting bracket; refer to Steering.

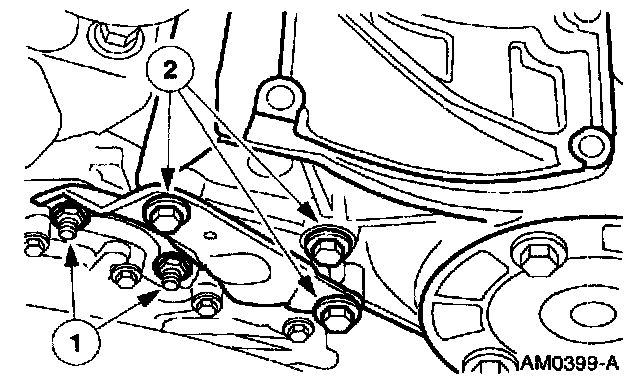

3. Remove the A/C compressor mounting bracket.
1 Loosen the nuts.
2 Remove the bolts and remove the A/C compressor mounting bracket.

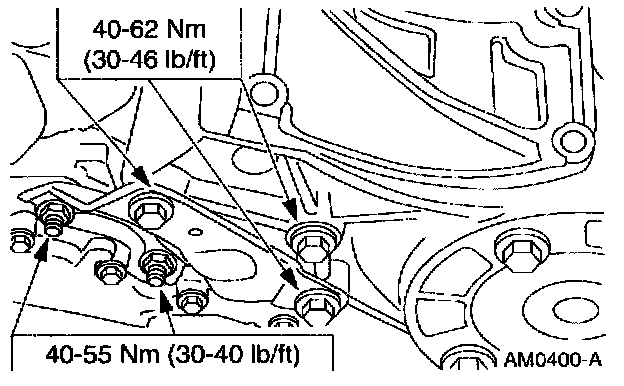

INSTALLATION







1. Follow the removal procedure in reverse order.
