Transmission Connector Layout

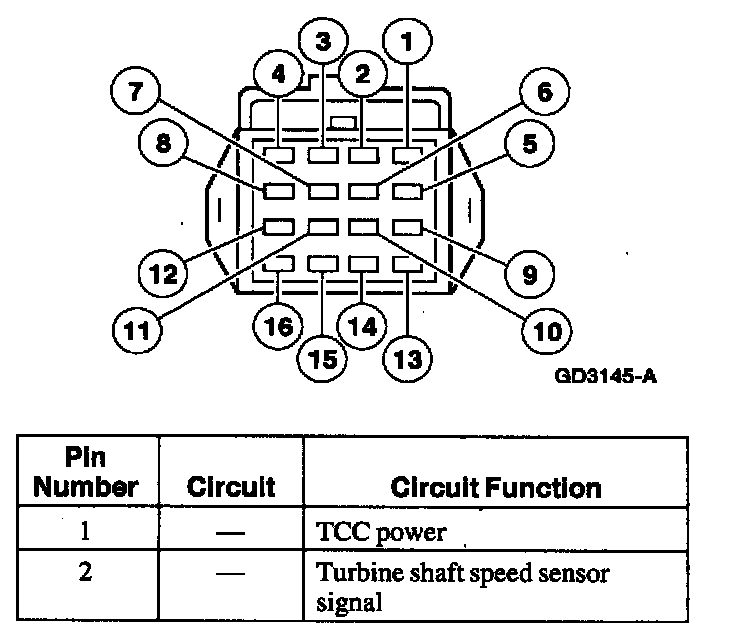

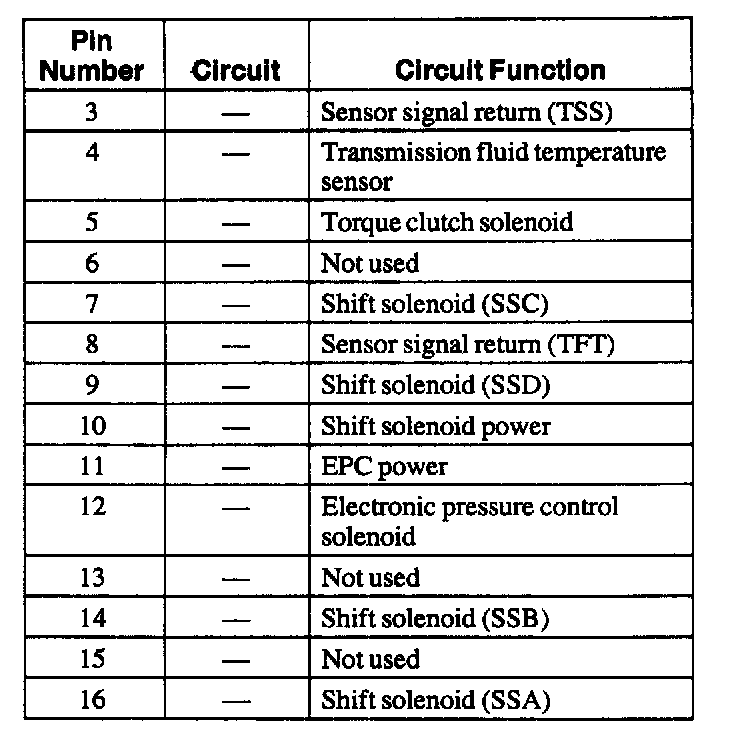

Transmission Vehicle Harness Connector

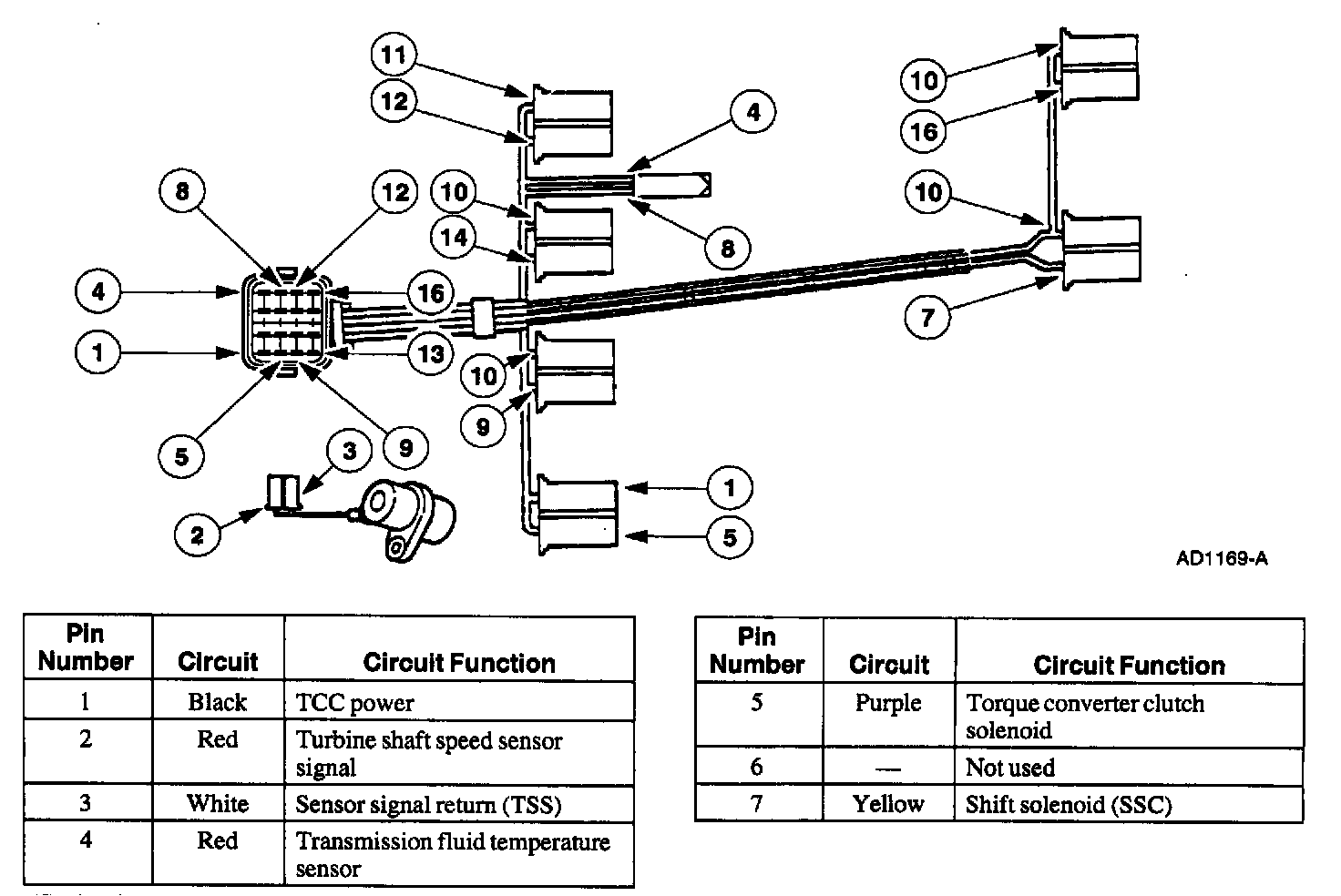

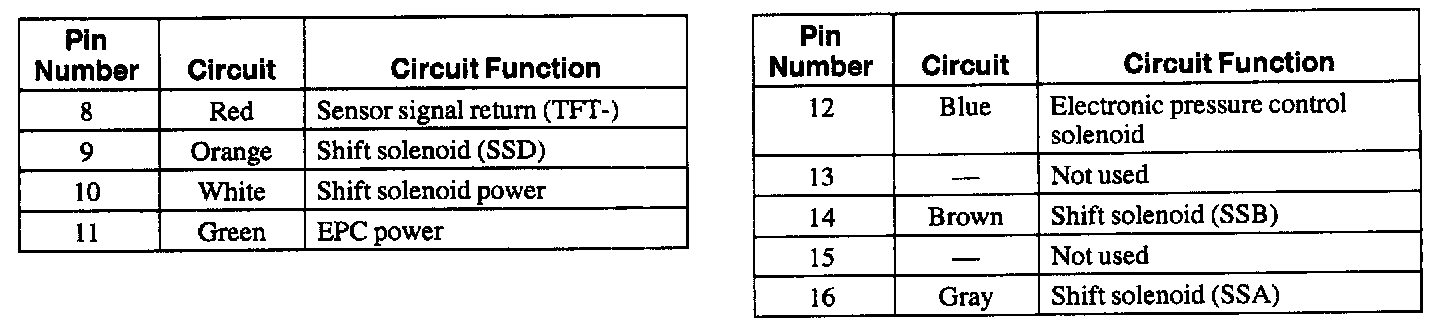

Transmission Internal Harness Connector

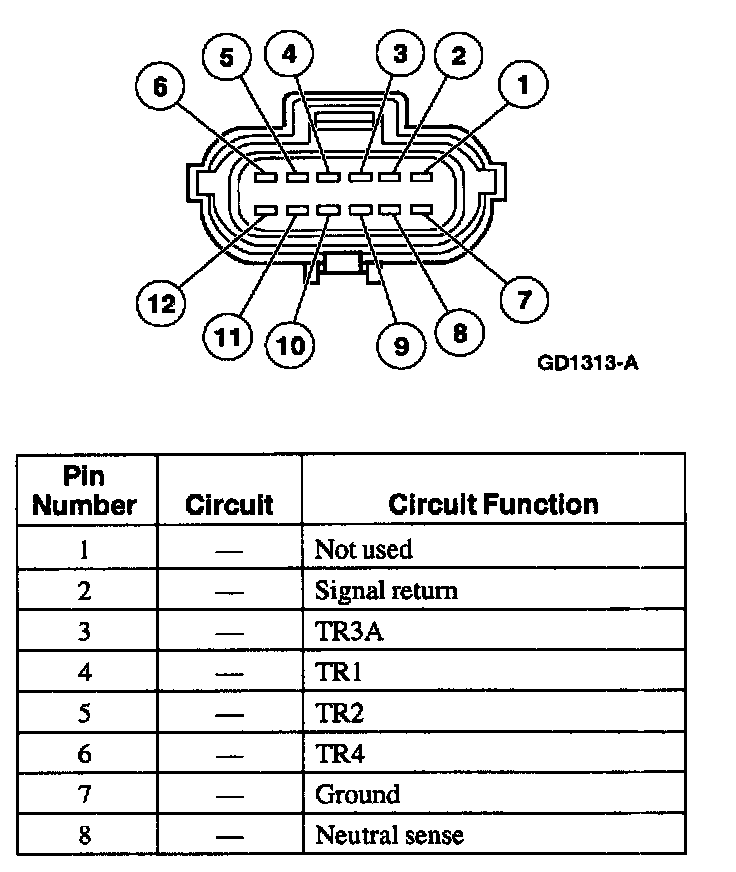

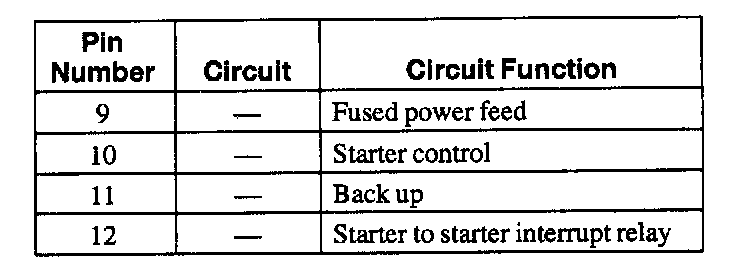

Digital Transmission Range (TR) Sensor Connector

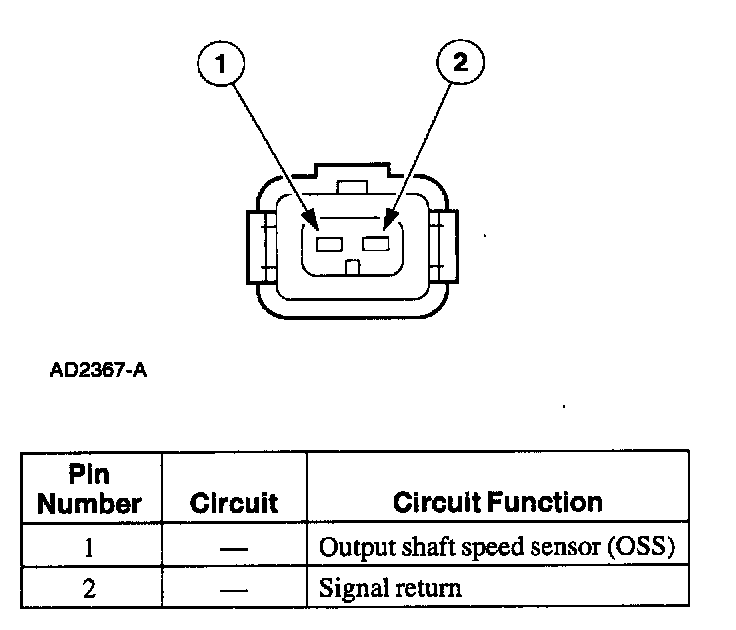

Output Shaft Speed (OSS) Sensor Connector

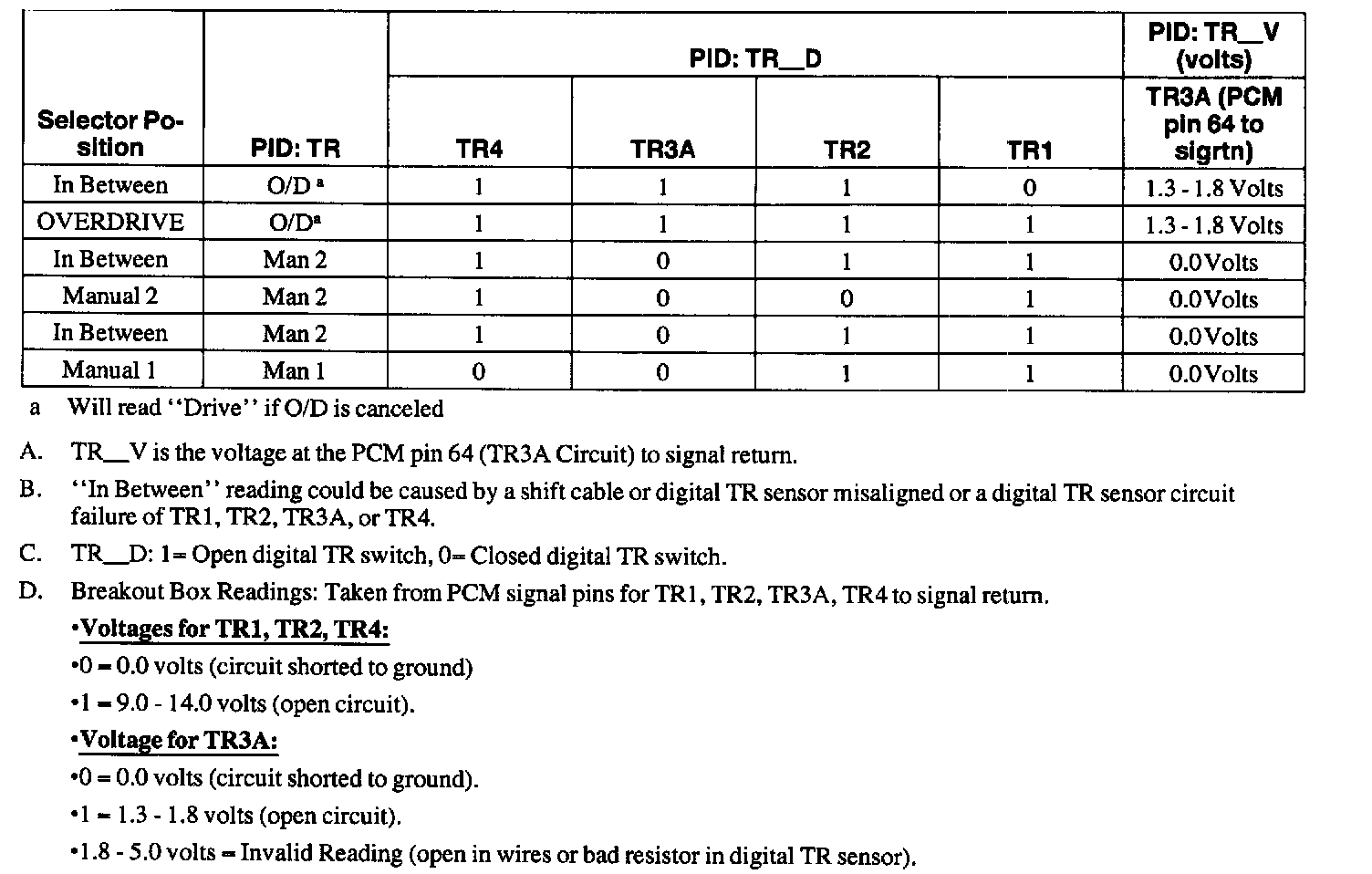

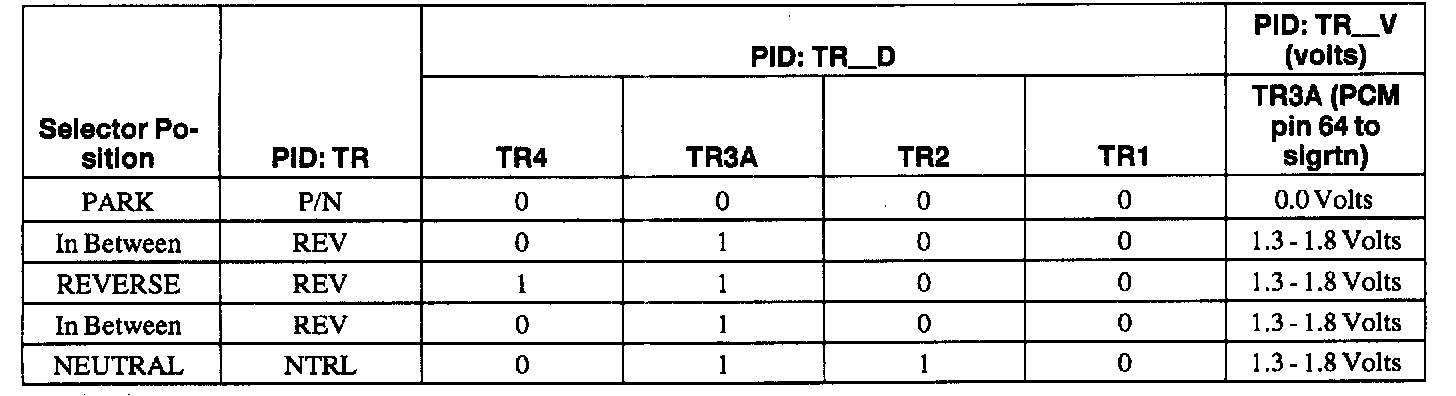

Digital Transmission Range (TR) Sensor Diagnosis Chart
