Ignition Coil: Service and Repair

REMOVAL

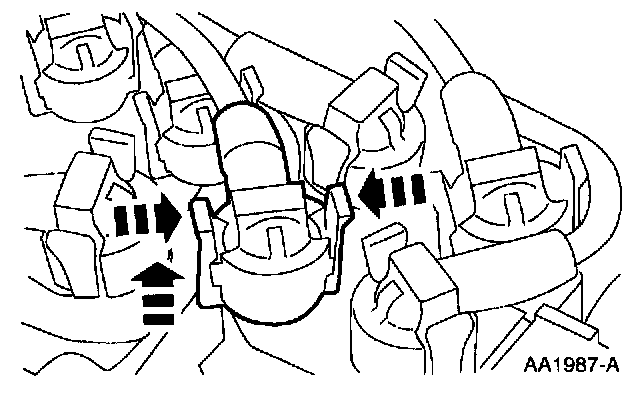

1. Squeeze the locking tabs and remove the spark plug wires from the ignition coils.

NOTE: Do not pull on the spark plug wire set.

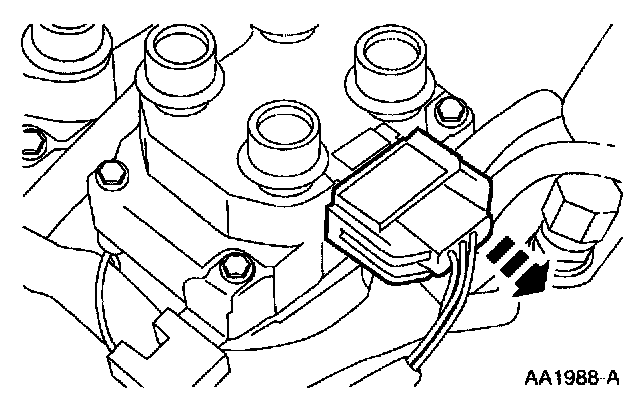

2. Disconnect the engine control sensor wiring electrical connector from the ignition coils.

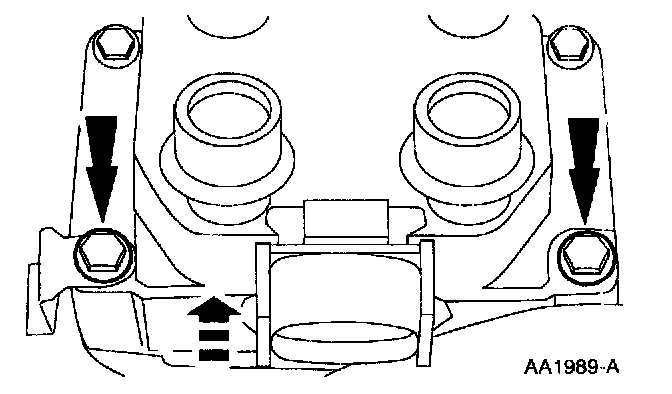

3. Remove the eight bolts. Remove the ignition coils.

INSTALLATION
1. Follow the removal procedure in reverse order.

NOTE: Wipe the coil towers with a clean cloth dampened with soap and water. Remove any soap film and dry with compressed air. Inspect for cracks, carbon tracking and dirt.
