Ford Truck
>>
2000
>>
F 450 2WD Super Duty V8-7.3L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Idle/Throttle Speed Control Unit
Idle/Throttle Speed Control Unit

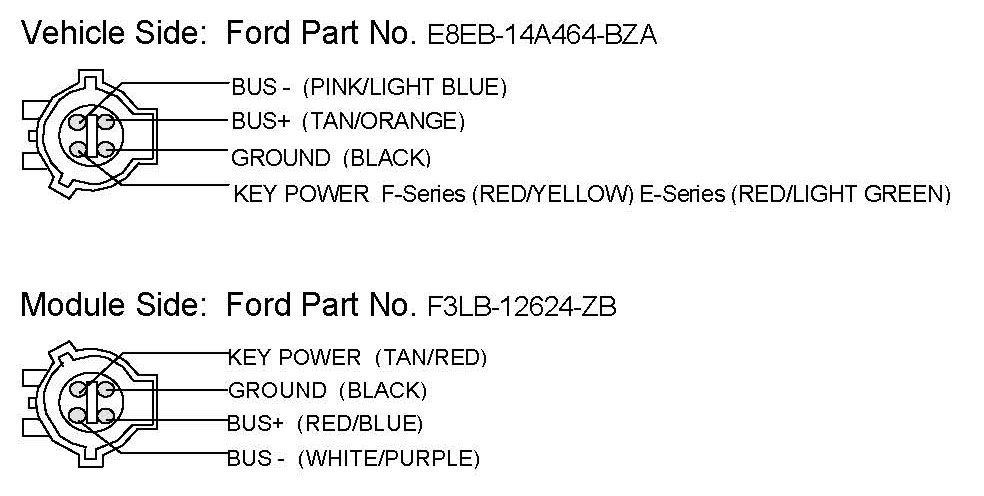

APCM MODULE HARNESS CONNECTORS
