Ford Truck
>>
2000
>>
F 150 4WD Pickup V8-5.4L CNG VIN M
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Left Front
Left Front

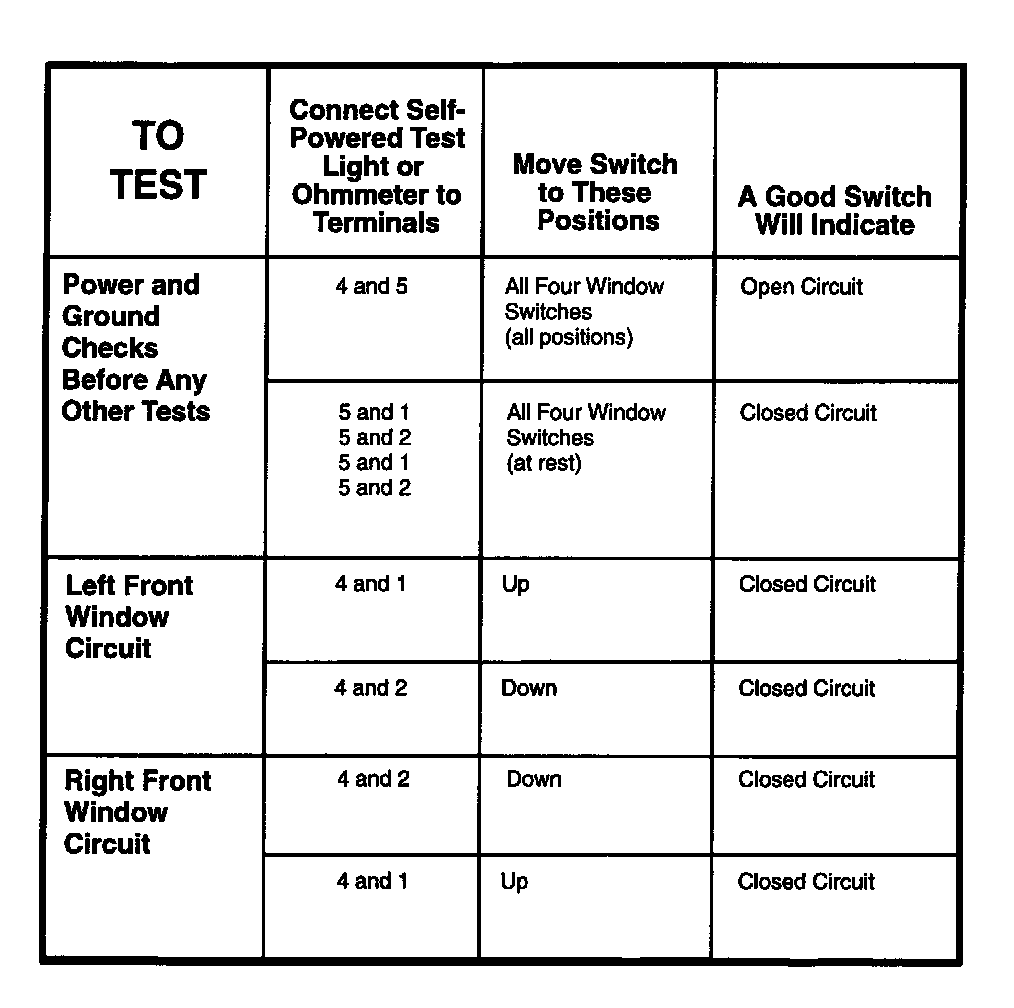

Component Testing Procedure:

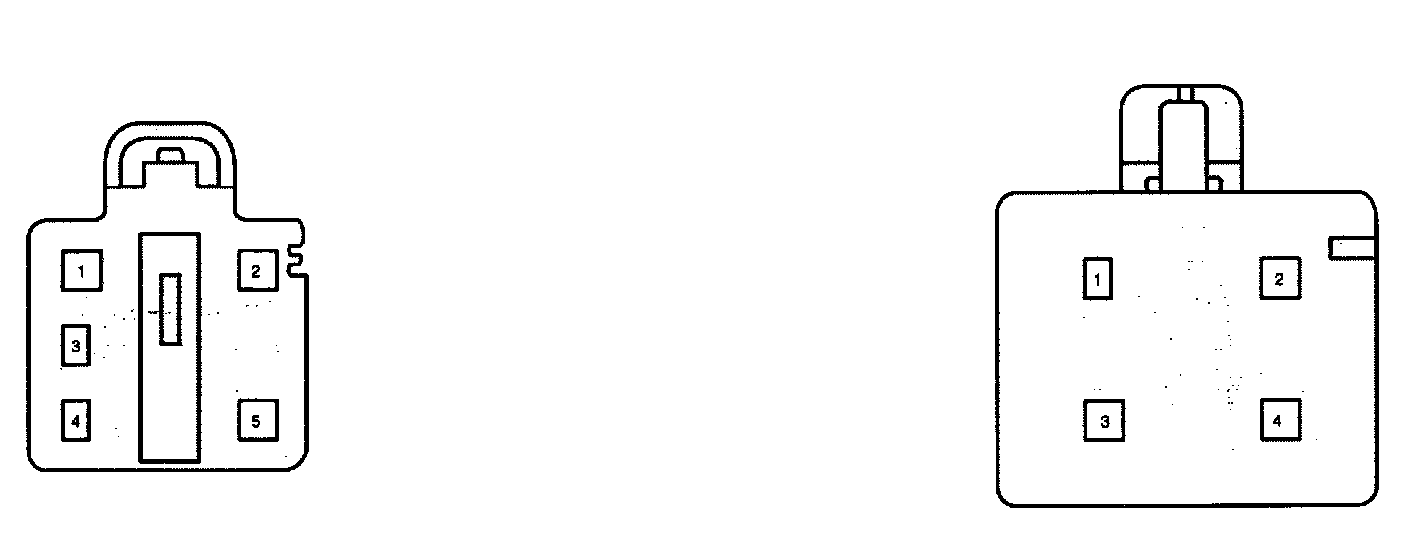

Terminals:

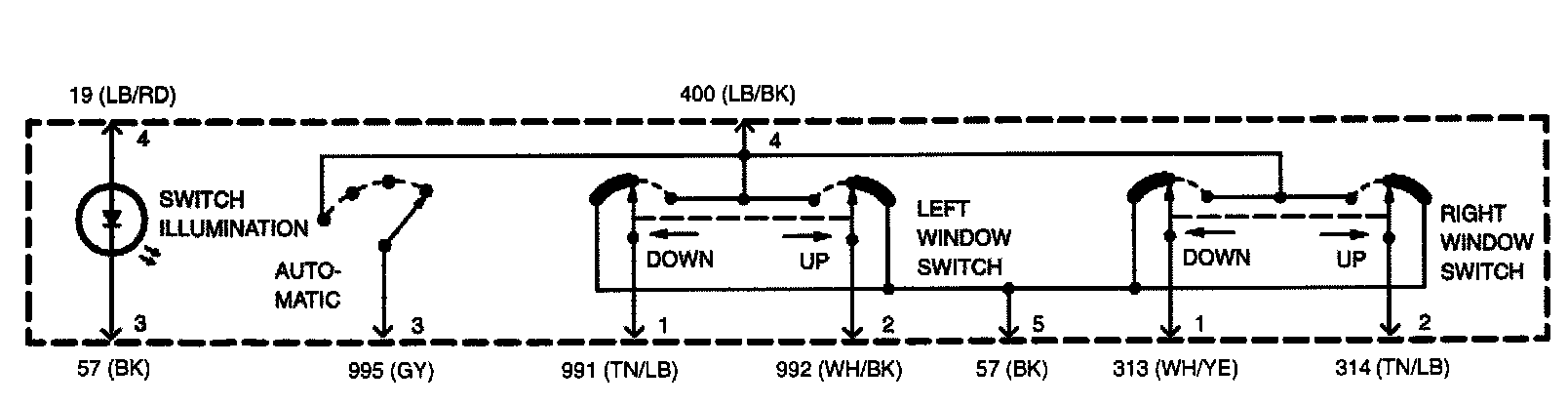

Schematic:
