Front

Drive Pinion Seal

Special Tools:

Special Tool(s)

Removal
1. Remove the front axle universal joint flange, please refer to Transmission and Drivetrain/Pinion Flange, Differential/Service and Repair/ Service and Repair






2. Remove pinion seal.

CAUTION: Do not damage the front axle housing.



Installation

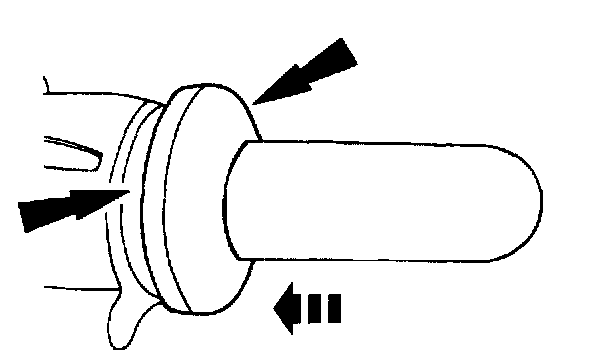

1. Clean the pinion seal bore, and use the Pinion Seal Replacer to install the pinion seal.
2. Install the front axle universal joint flange, please refer to Transmission and Drivetrain/Pinion Flange, Differential/Service and Repair/ Service and Repair
