Fuel Pressure Test Port: Service and Repair

REMOVAL
1. Carry out the Pressure Relief-Fuel Line Venting procedure. Fuel Line Venting Pressure Relief
2. Remove the air cleaner assembly and tubes.

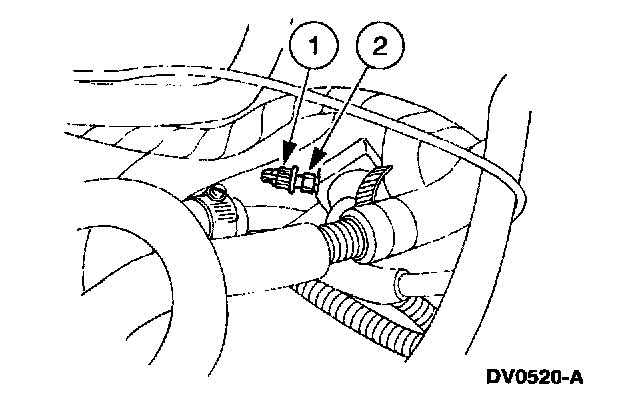

3. Remove the fuel pressure relief valve.
1 Remove the fuel pressure relief valve cap.
2 Remove the fuel pressure relief valve from the fuel injection supply manifold.

INSTALLATION

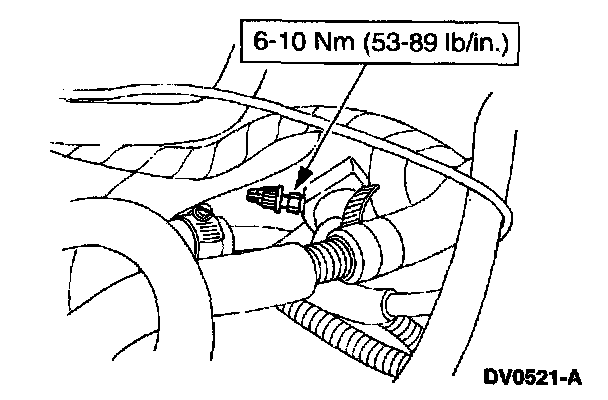

1. To install, reverse the removal procedure.
2. Carry out the Fuel System Leak Test procedure. Standard Models (Non Bi-Fuel)
