Standard Models (Non Bi-Fuel)

REMOVAL
1. Remove the fuel injection supply manifold. For additional information, refer to Fuel Rail.

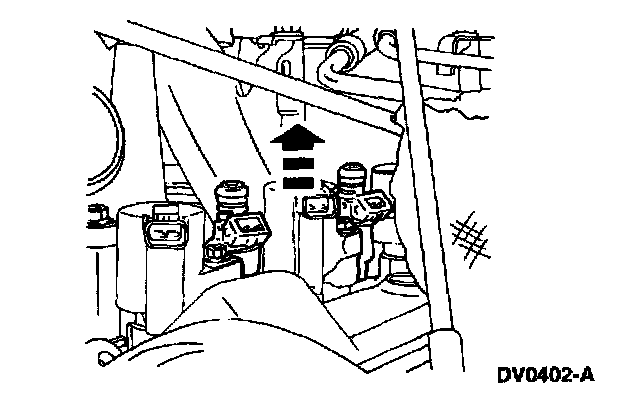

2. Remove the fuel injectors.

INSTALLATION

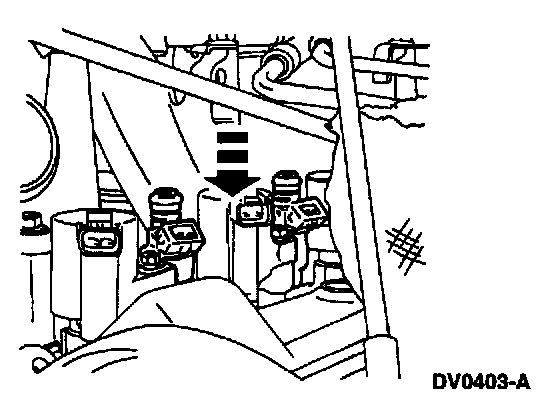

1. To install, reverse the removal procedure.

NOTE:
^ Install new O-ring seals.
^ Lubricate the O-ring seals with Motorcraft Super Premium SAE 5W-30 motor oil XO-5W30-QSP meeting Ford specification WSS-M2C153-G or equivalent prior to installation to help seal and ease the installation.
