Expansion Block/Orifice Tube: Locations

Clutch Cycling Orifice Tube Type Refrigerant System:

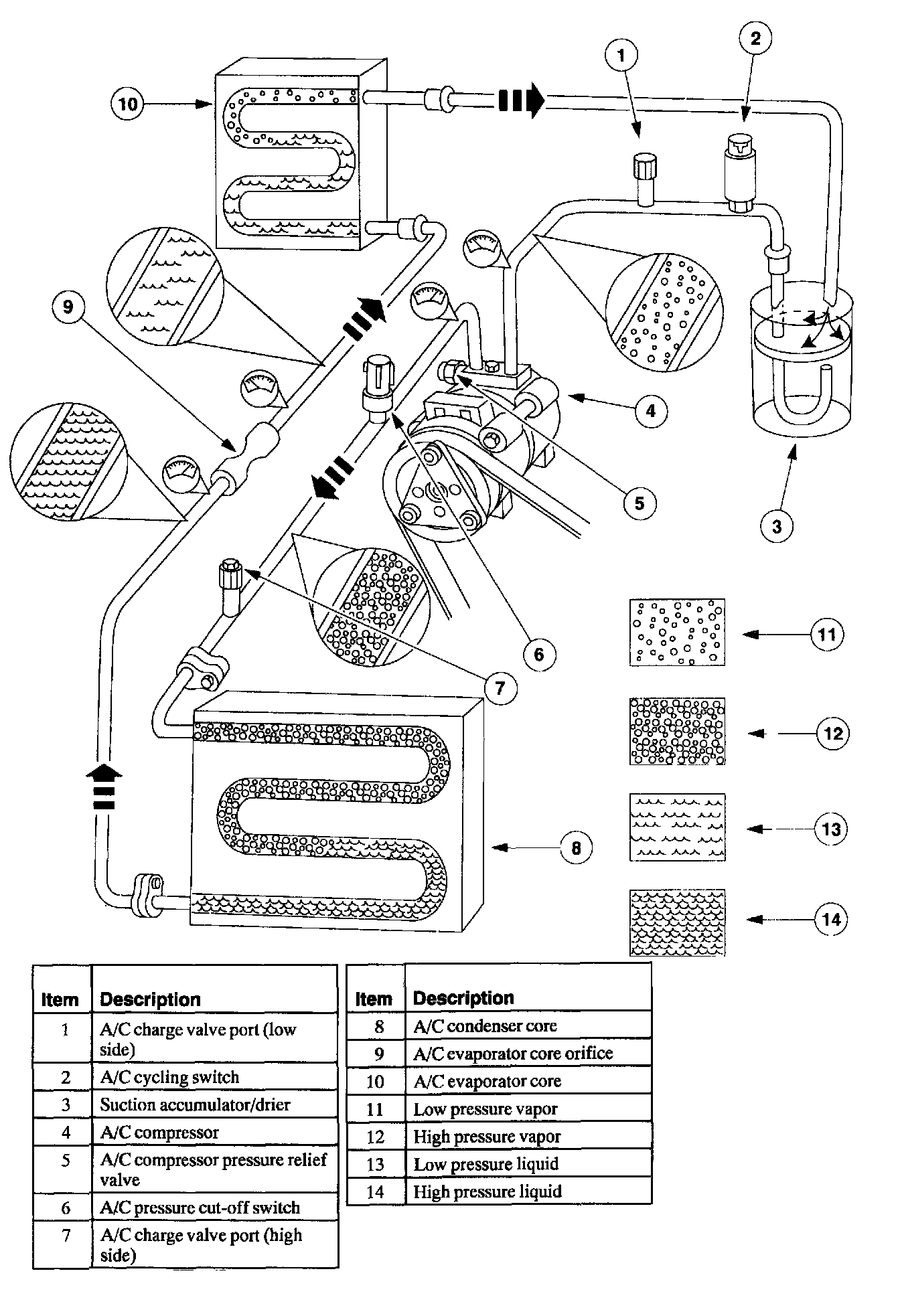

Refrigerant System Components:
