Tailgate Latch

REMOVAL







1. Open the tailgate.







2. Remove the tailgate access panel.
1 Remove the screws.
2 Remove the tailgate access panel.







3. Disconnect the tailgate latch rod.
1 Open the clip.
2 Disconnect the rod.

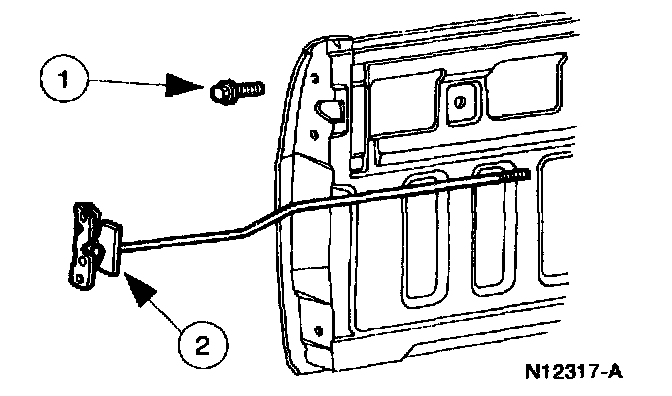

4. Remove the tailgate latch (RH shown, LH similar).
1 Remove the two screws.
2 Remove the tailgate latch.

INSTALLATION












1. To install, reverse the removal procedure.
^ If necessary, use Multi-Purpose Grease Spray F5AZ-19G209-AA or equivalent meeting Ford specification ESR-M1C159-A to lubricate the latches.

NOTE: Make sure the latch release rods are not preloading the latches. They should be clipped in a relaxed state with no slack.
